Same model may have multiple batches, images only for reference.

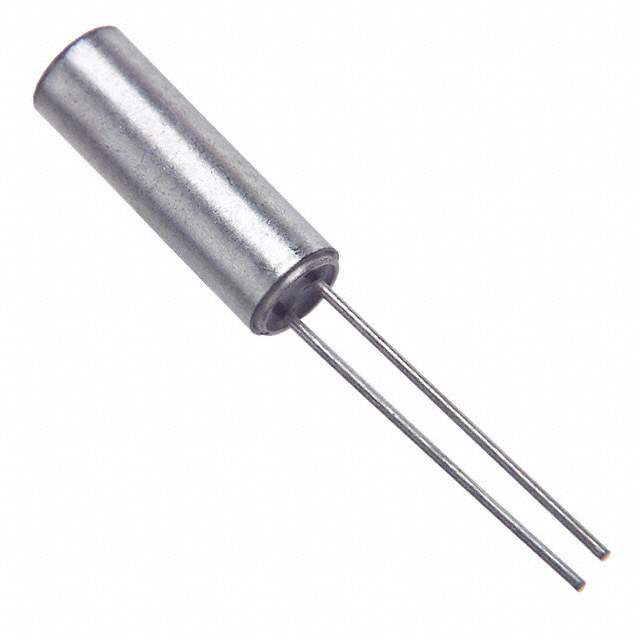

CSA309-14.31818MABJ Real Image
Same model may have multiple batches, images only for reference.

CSA309-14.31818MABJ

Part No CSA309-14.31818MABJ
Manufacturer Citizen Finedevice Co Ltd
Catalog Crystals
Description CRYSTAL 14.31818MHZ 18PF T/H
Datasheet
CSA309-14.31818MABJ Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Categories Crystals, Oscillators, Resonators
Manufacturer Citizen Finedevice Co Ltd
Series CSA309
Packaging Bulk
Part Status Obsolete(EOL)
Type MHz Crystal
Frequency 14.31818MHz
Frequency Stability ±50ppm
Frequency Tolerance ±30ppm
Load Capacitance 18pF
ESR (Equivalent Series Resistance) 50 Ohm
Operating Mode Fundamental
Operating Temperature Range -10°C ~ 60°C
Mounting Style Through Hole
Package Cylindrical Can, Radial
Dimension 0.118" Dia x 0.346" L (3.00mm x 8.80mm)
Height - Seated (Maximum) 0.354" (9.00mm)
Win Source Part Number 771851-CSA309-14.31818MABJ
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CSA309-14.31818MABJ CAD Model

Description

The Citizen Finedevice Co Ltd 771851-CSA309-14.31818MABJ is an obsolete (EOL) electronic component.

  • Type: MHz crystal
  • Frequency: 14.31818MHz
  • Packaging: Bulk
  • Mounting Style: Through Hole
  • Operating Temperature Range: -10°C ~ 60°C
  • Package: Cylindrical Can, Radial
  • ESR: 50 Ohm
  • Frequency Stability: ±50ppm
  • Frequency Tolerance: ±30ppm
  • Load Capacitance: 18pF
  • Operating Mode: Fundamental
  • Categories: Crystals, Oscillators, and Resonators
  • Dimension: 0.118" Dia x 0.346" L (3.00mm x 8.80mm)
  • Height - Seated (Max): 0.354" (9.00mm)
