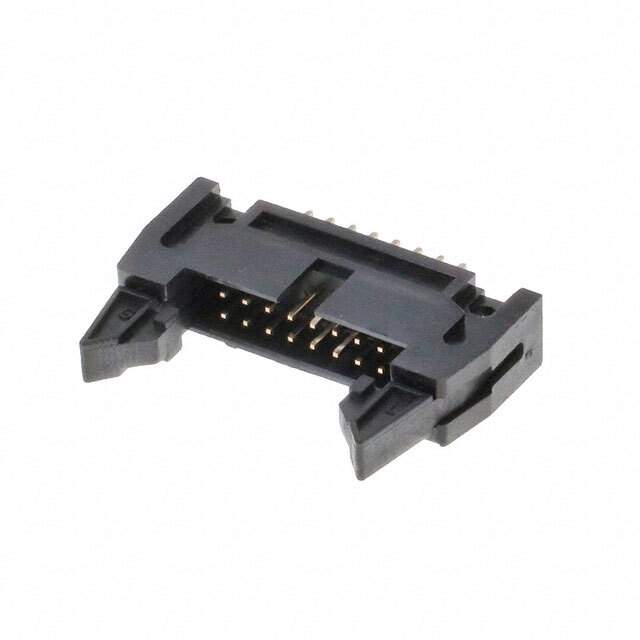

3010-16-001-12-00 Real Image
Same model may have multiple batches, images only for reference.

3010-16-001-12-00

Part No 3010-16-001-12-00
Manufacturer CNC Tech
Catalog Rectangular Connectors
Description CONN HEADER VERT 16POS 2.54MM / Connector Header Through Hole 16 position 0.100" (2.54mm)
Datasheet
3010-16-001-12-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Rectangular Connectors - Headers, Male Pins
Mfr CNC Tech
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.100" (2.54mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.100" (2.54mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole
Termination Solder
Fastening Type Latch Lock/Eject Hooks, Short
Contact Length - Post 0.134" (3.40mm)
Insulation Height 0.669" (17.00mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material Brass
Insulation Material Polybutylene Terephthalate (PBT)
Features Keying Slot
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 3A
Voltage Rating 250VAC/DC
Base Product Number 3010-16
Standard Package 60
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Win Source Part Number 1341333-3010-16-001-12-00
Ultra Librarian 3D Model Ultra Librarian 3010-16-001-12-00 CAD Model

Description

The 3010-16-001-12-00 rectangular connector header is a male pin connector that is used to connect wires and cables to a circuit board.

  • Positions: 16
  • Package: tray
  • Pitch Mating: 0.100 inches (2.54mm)
  • Row Spacing Mating: 0.100 inches (2.54mm)
  • Contact Finish: gold plated with a flash finish thickness
  • Current Rating: 3A
  • Temperature Range: -40°C to 105°C
  • ECCN: EAR99
  • REACH Compliant: yes
