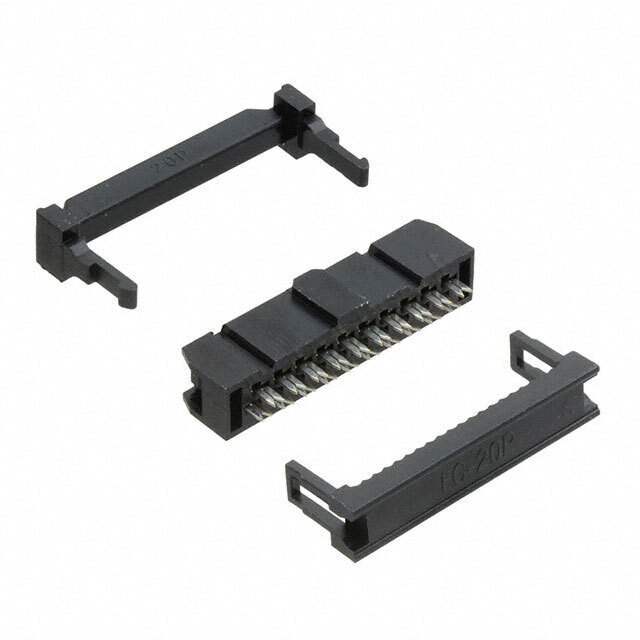

3030-20-0103-00 CNC Tech
Same model may have multiple batches, images only for reference.

3030-20-0103-00

Part No 3030-20-0103-00
Manufacturer CNC Tech
Catalog Rectangular Connectors
Description CONN SOCKET 20POS IDC GOLD
Datasheet
3030-20-0103-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Win Source Part Number WS1202077-3030-20-0103-00
Manufacturer CNC Tech
Category Connectors, Interconnects -Rectangular Connectors- Free Hanging, Panel Mount
Package Tray
Product Status Active
Connector Type Socket
Contact Type Female Socket
Pitch 20Pitch
Number of Rows 2
Mounting Type Free Hanging (In-Line)
Cable Termination IDC
Ultra Librarian 3D Model Ultra Librarian 3030-20-0103-00 CAD Model

Description

The CNC Tech rectangular connectors are free-hanging, panel mount connectors with a pitch of 20Pitch.

  • Connector Type: Socket
  • Sockets: Female
  • Rows: Two Rows
  • Package: Tray
  • Mounting Configuration: Free-Hanging (In-Line)
  • Product Status: Active
