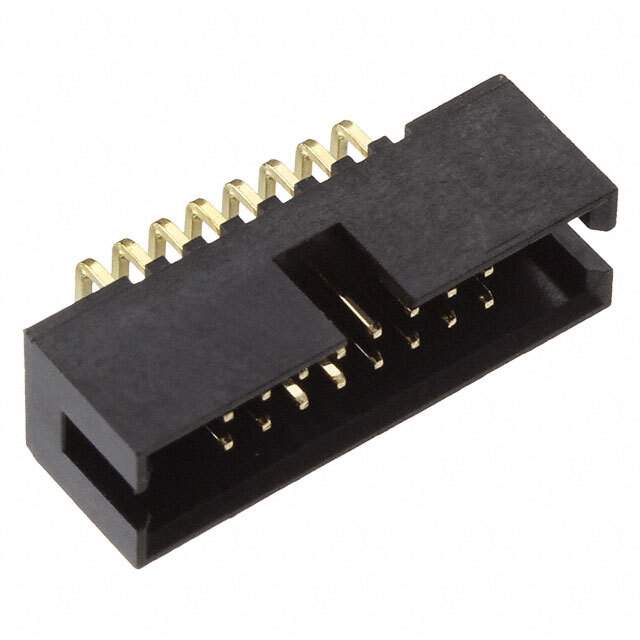

3221-16-0200-00 Real Image
Same model may have multiple batches, images only for reference.

3221-16-0200-00

Part No 3221-16-0200-00
Manufacturer CNC Tech
Catalog Rectangular Connectors
Description CONN HEADER R/A 16POS 1.27MM  /  Connector Header Through Hole, Right Angle 16 position 0.050" (1.27mm)
Datasheet
3221-16-0200-00 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects>Rectangular Connectors - Headers, Male Pins
Mfr CNC Tech
Package Tray
Connector Type Header
Contact Type Male Pin
Pitch - Mating 0.050" (1.27mm)
Number of Positions 16
Number of Rows 2
Row Spacing - Mating 0.050" (1.27mm)
Number of Positions Loaded All
Style Board to Cable/Wire
Shrouding Shrouded - 4 Wall
Mounting Type Through Hole, Right Angle
Termination Solder
Fastening Type Push-Pull
Contact Length - Post 0.083" (2.11mm)
Insulation Height 0.201" (5.10mm)
Contact Shape Square
Contact Finish - Mating Gold
Contact Finish Thickness - Mating Flash
Contact Material Brass
Insulation Material Polyamide (PA6T), Nylon 6T
Features Keying Slot
Temperature Range - Operating -40°C ~ 105°C
Material Flammability Rating UL94 V-0
Current Rating (Amps) 1A
Base Product Number 3221-16
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8536.69.4040
Other Names 3221-16-0200-00-ND,1175-1740
Standard Package 240
Win Source Part Number 1209600-3221-16-0200-00
Ultra Librarian 3D Model Ultra Librarian 3221-16-0200-00 CAD Model

Description

The 1209600-3221-16-0200-00 is a male pin rectangular connector header that has a keying slot feature.

  • Connector Type: Header
  • Gender: Male Pin
  • Application Style: Board to Cable/Wire
  • Positions: 16 (All Loaded)
  • Rows: Two
  • Termination: Soldering
  • Fastening Type: Push-Pull
  • Package: Tray
  • Contact Material: Brass
  • Contact Finish: Gold
  • Insulation Material: Polyamide (PA6T), Nylon 6T
  • Flammability Rating: UL94 V-0
  • Contact Length: 0.083 inches (2.11mm)
  • Insulation Height: 0.201 inches (5.10mm)
  • Row Spacing: 0.050 inches (1.27mm)
  • Operating Temperature: -40°C to 105°C
