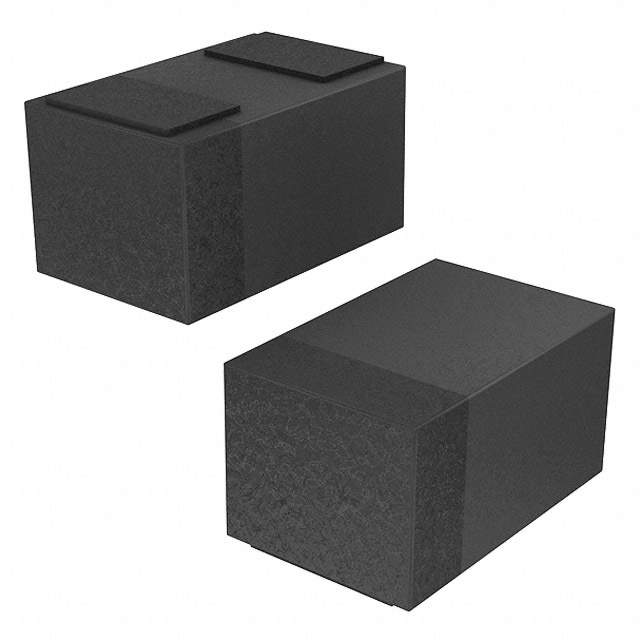

CDSQR400B Real Image
Same model may have multiple batches, images only for reference.

CDSQR400B

Part No CDSQR400B
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Datasheet
CDSQR400B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Discrete Semiconductor Products>Diodes - Rectifiers - Single
Mfr Comchip Technology
Package Tape & Reel
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 80 V
Current - Average Rectified (Io) 100mA
Voltage - Forward (Vf) (Max) @ If 1 V @ 100 mA
Speed Small Signal =< 200mA (Io), Any Speed
Reverse Recovery Time (trr) 4 ns
Current - Reverse Leakage @ Vr 100 nA @ 80 V
Capacitance @ Vr, F 3pF @ 0.5V, 1MHz
Mounting SMD (SMT)
Package / Case 0402 (1005 Metric)
Supplier Device Package 0402/SOD-923F
Operating Temperature - Junction 125°C (Max)
Base Product Number CDSQR400
Other Names 641-1286-2,641-1286-1,641-1286-6,Q9517698
Standard Package 5,000
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0070
Win Source Part Number 1282761-CDSQR400B
Ultra Librarian 3D Model Ultra Librarian CDSQR400B CAD Model

Description

The Comchip Technology CDSQR400B is a rectifier diode with a maximum reverse voltage of 80V and an average rectified current of 100mA.

  • Voltage - DC Reverse (Vr) (Max): 80V
  • Current - Average Rectified (Io): 100mA
  • Voltage - Forward (Vf) (Max) @ If: 1V @ 100mA
  • Current - Reverse Leakage @ Vr: 100nA @ 80V
  • Package / Case: 0402 (1005 Metric)
  • Supplier Device Package: 0402/SOD-923F
  • Capacitance @ Vr, F: 3pF @ 0.5V, 1MHz
  • Reverse Recovery Time (trr): 4ns
  • Operating Temperature Junction: 125°C
  • Product: Discrete Semiconductor Products>Diodes - Rectifiers - Single
  • Packaging: Tape and Reel
  • Standard Package: 5,000
  • REACH: Unaffected
  • ECCN: EAR99
