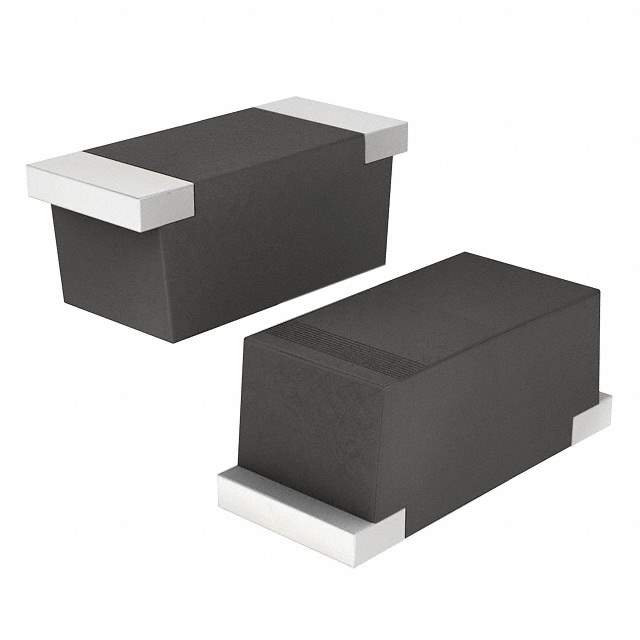

CGRM4004-HF Real Image
Same model may have multiple batches, images only for reference.

CGRM4004-HF

Part No CGRM4004-HF
Manufacturer Comchip Technology
Catalog Diodes, Rectifiers - Single
Description DIODE GEN PURP 400V 1A SOD123
Datasheet
CGRM4004-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Diode Type Standard
Voltage - DC Reverse (Vr) (Max) 400V
Current - Average Rectified (Io) 1A
Voltage - Forward (Vf) (Max) @ If 1.1V @ 1A
Speed(Frequency) Standard Recovery >500ns, > 200mA (Io)
Current - Reverse Leakage @ Vr 5μA @ 400V
Capacitance @ Vr, F 15pF @ 4V, 1MHz
Mounting SMD (SMT)
Case / Package Mini SMA/SOD-123
Operating Temperature - Junction -55°C to 150°C
Win Source Part Number 1029171-CGRM4004-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 2,500
Ultra Librarian 3D Model Ultra Librarian CGRM4004-HF CAD Model

Description

The Comchip Technology 1029171-CGRM4004-HF is a standard diode that is ideal for discrete semiconductor products.

  • Mounting: SMD (SMT)
  • Voltage - DC Reverse (Vr) (Max): 400V
  • Average Rectified Current (Io): 1A
  • Voltage - Forward (Vf) (Max) @ If: 1.1V @ 1A
  • Current - Reverse Leakage @ Vr: 5μA @ 400V
  • Capacitance @ Vr, F: 15pF @ 4V, 1MHz
  • Supply and Demand Status: Balance
  • Package Quantity: 2,500 pcs
