Same model may have multiple batches, images only for reference.

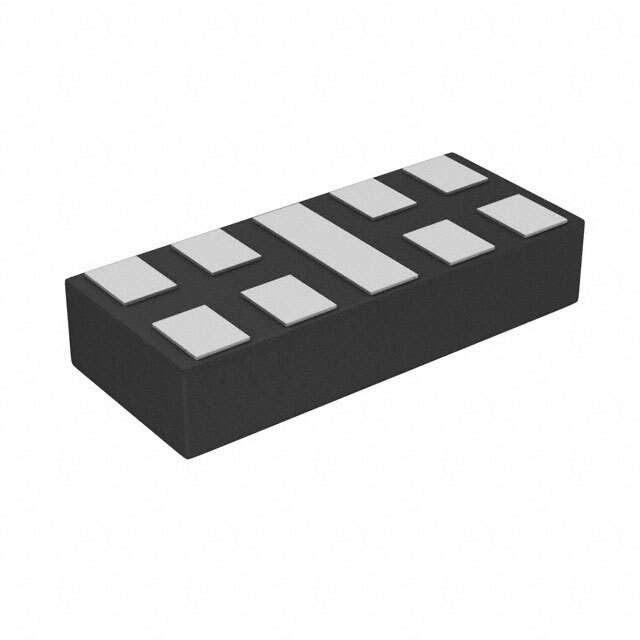

CPDA10R5V0SP-HF Real Image
Same model may have multiple batches, images only for reference.

CPDA10R5V0SP-HF

Part No CPDA10R5V0SP-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12VC 10DFN
Datasheet
CPDA10R5V0SP-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Bidirectional Channels 4
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12V (Typ)
Peak Pulse Current(Ippm) 1A (8/20μs)
Power Dissipation - Pd 60W
Applications General Purpose
Capacitance @ Frequency 0.15pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TA)
Mounting SMD (SMT)
Case / Package 10-DFN (2.5x1)
Win Source Part Number 1030032-CPDA10R5V0SP-HF
Popularity Medium
Supply and Demand Status Balance
Quantity per package 3k pcs
Ultra Librarian 3D Model Ultra Librarian CPDA10R5V0SP-HF CAD Model

Description

The Comchip Technology CPDA10R5V0SP-HF is a zener diode.

  • Type: General-purpose diode
  • Commonly Used in: Commonly used in circuit protection.
  • Capacitance: 0.15pF @ 1MHz
  • Direction: Bidirectional
  • Mounting: SMD (SMT) technology
  • Package: 10-DFN (2.5x1) case
  • STAND-OFF Voltage (Vwm): 5V (Max)
  • Minimum Breakdown Voltage: 6V
  • Maximum Clamping Voltage: 12V (Typ)
  • Peak Pulse Current: 1A (8/20μs)
  • Power Dissipation: 60W
  • Supply and Demand Status: Balanced.
  • Package Contains: 3k pieces.
