Same model may have multiple batches, images only for reference.

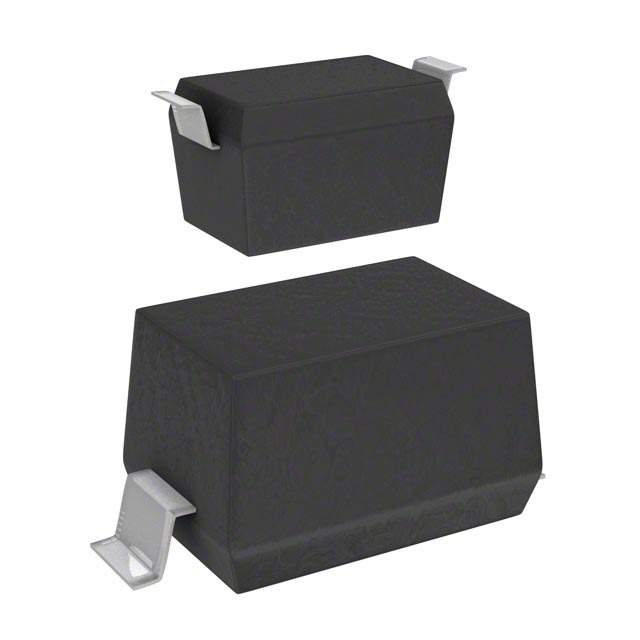

CPDH5V0U-HF Real Image
Same model may have multiple batches, images only for reference.

CPDH5V0U-HF

Part No CPDH5V0U-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC SOD523
Datasheet
CPDH5V0U-HF Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Obsolete(EOL)
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 16A (8/20μs)
Power Dissipation - Pd 200W
Applications General Purpose
Capacitance @ Frequency 90pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package SOD-523
Win Source Part Number 1030056-CPDH5V0U-HF
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CPDH5V0U-HF CAD Model

Description

The CPDH5V0U-HF is a zener diode manufactured by Comchip Technology.

  • Diode Type: Zener
  • Status: Obsolete (EOL)
  • Popularity: Medium
  • Supply and Demand: Balanced
  • Application: General Purpose
  • Stand-Off Voltage (Vwm): 5V (Max)
  • Breakdown Voltage (Min): 6V
  • Peak Pulse Current (Ippm): 16A (8/20μs)
  • Power Dissipation (Pd): 200W
