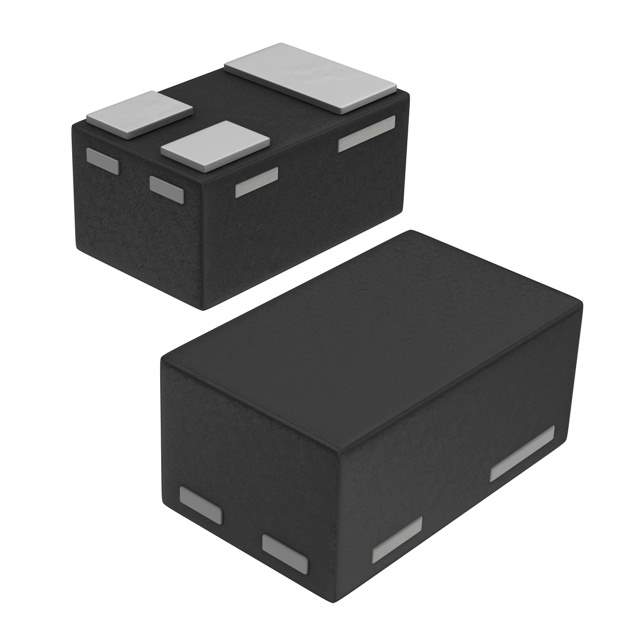

NXP PESD3V3L2UM ESD Protection Diode

The NXP PESD3V3L2UM is a state-of-the-art ESD protection diode designed to safeguard sensitive electronic components from electrostatic discharge (ESD) and other transient voltage events. This robust device is an essential component for modern electronic designs, particularly in applications where the integrity and reliability of data lines and signal interfaces are critical.

Constructed using NXP's advanced low-capacitance semiconductor process, the PESD3V3L2UM offers bidirectional ESD protection for one data line and is capable of withstanding ESD discharges up to ±30 kV in accordance with the IEC 61000-4-2 standard. This impressive protection level ensures that your electronic devices can withstand the rigors of everyday handling and unexpected ESD events without suffering damage to their sensitive circuitry.

The compact SOT-23 package of the PESD3V3L2UM not only saves valuable board space but also allows for easy integration into a wide range of applications. With its low clamping voltage and low leakage current, it maintains signal integrity while providing robust protection, making it an ideal choice for high-speed data lines, including USB 2.0, HDMI, Ethernet, and antenna lines.

Key features of the NXP PESD3V3L2UM include:

• Low capacitance of typically 1.5 pF per I/O pair for minimal signal attenuation.
• ESD protection up to ±30 kV (IEC 61000-4-2).
• Extremely low leakage current of less than 0.1 µA at the working voltage, ensuring energy efficiency.
• Support for high data rates due to low insertion loss.
• Robust surge protection with a maximum peak pulse power of 200 W (8/20 µs waveform).
• RoHS compliance and Halogen-Free, supporting green product initiatives.

Whether you are designing consumer electronics, communication devices, or computer peripherals, the NXP PESD3V3L2UM ESD protection diode is your go-to solution for safeguarding your products against the threats posed by ESD and other voltage transients. By choosing NXP's proven ESD protection technology, you can enhance the durability and reliability of your electronic designs, ensuring customer satisfaction and long-term device performance.
