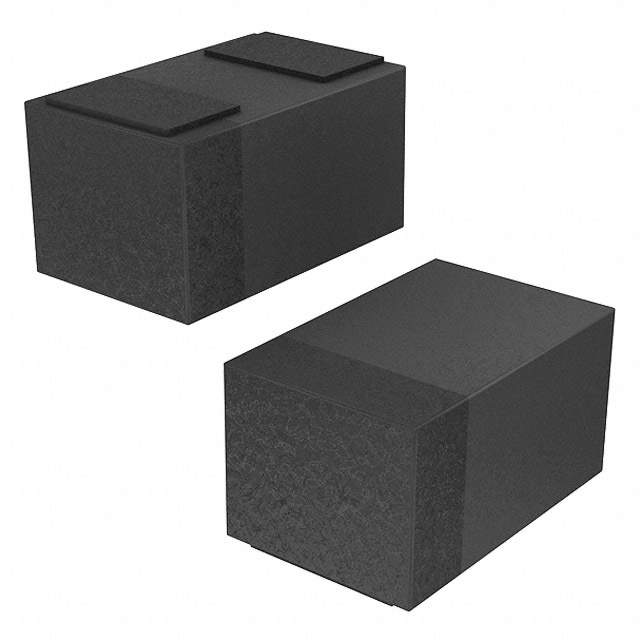

CPDQR5V0UP-HF

Part No CPDQR5V0UP-HF
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 5VWM 12.5VC 0402
Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Circuit Protection
Manufacturer Comchip Technology
Packaging Reel - TR
Status Active
Type Zener
Unidirectional Channels 1
STAND-OFF Voltage (Vwm) 5V (Max)
Minimum Breakdown Voltage 6V
Max Clamping Voltage 12.5V
Peak Pulse Current(Ippm) 2A (8/20μs)
Power Dissipation - Pd 25W
Applications General Purpose
Capacitance @ Frequency 10pF @ 1MHz
Temperature Range - Operating -55°C to 125°C (TJ)
Mounting SMD (SMT)
Case / Package 0402/SOD-923F
Win Source Part Number 100281-CPDQR5V0UP-HF
Popularity Medium
Supply and Demand Status Sufficient
Application Field Used in Multimedia, Industrial
Quantity per package 5k pcs
Ultra Librarian 3D Model Ultra Librarian CPDQR5V0UP-HF CAD Model

Description

CPDQR5V0UP-HF

The CPDQR5V0UP-HF is designed with the latest technology to provide unparalleled performance and reliability. It excels in applications where space and efficiency are critical factors.

Features:

  • Ultra-low power consumption
  • Advanced circuitry for enhanced performance
  • Small footprint suitable for compact designs

Benefits:

  • Significant energy savings over time
  • Enhanced system efficiency and reliability
  • Ease of integration into compact and portable devices

Applications/Projects:

  • Wearable technology
  • Portable electronics
  • Telecommunications equipment

The CPDQR5V0UP-HF component provides superior performance with energy efficiency, ideal for cutting-edge technological applications.
