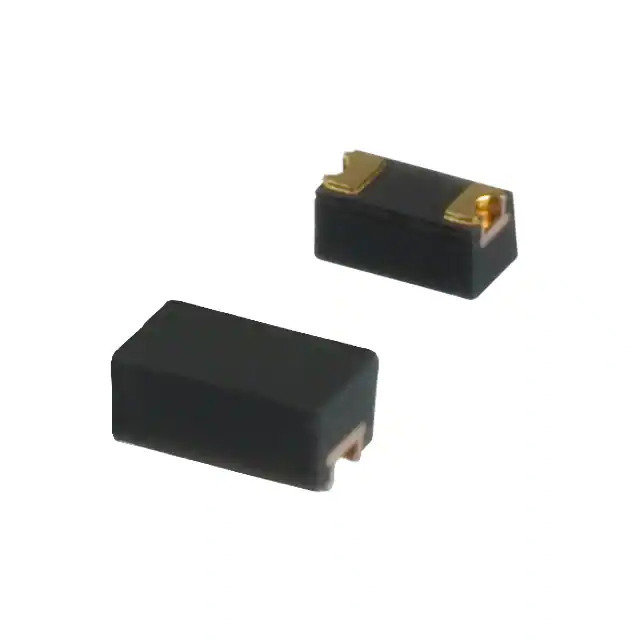

Same model may have multiple batches, images only for reference.
CPDU3V3UP Comchip Technology
Same model may have multiple batches, images only for reference.

CPDU3V3UP

Part No CPDU3V3UP
Manufacturer Comchip Technology
Catalog TVS - Diodes
Description TVS DIODE 3.3VWM 8V 0603/SOD523F / 8V Clamp 5A (8/20µs) Ipp Tvs Diode Surface Mount 0603/SOD-523F
Datasheet
CPDU3V3UP Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Circuit Protection - Transient Voltage Suppressors (TVS) - TVS Diodes
Mfr Comchip Technology
Series -
Package Tape & Reel
Product Status Active
Type Zener
Unidirectional Channels 1
Voltage - Reverse Standoff (Typ) 3.3V
Voltage - Breakdown (Min) -
Voltage - Clamping (Max) @ Ipp 8V
Current - Peak Pulse (10/1000µs) 5A (8/20µs)
Power - Peak Pulse 40W
Power Line Protection No
Applications General Purpose
Capacitance @ Frequency 12pF @ 1MHz
Temperature Range - Operating -55°C ~ 125°C (TJ)
Mounting Type Surface Mount
Package / Case 2-SMD, No Lead
Supplier Device Package 0603/SOD-523F
Base Product Number CPDU3V3
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8541.10.0080
Win Source Part Number 1356180-CPDU3V3UP
Ultra Librarian 3D Model Ultra Librarian CPDU3V3UP CAD Model

Description

The CPDU3V3UP is a TVS diode from Comchip Technology.

  • Package: Surface Mountable 2-SMD, No Lead
  • Type: Zener Diode
  • Reverse Standoff Voltage: 3.3V
  • Clamping Voltage: 8V @ Peak Pulse Current of 5A
  • Peak Pulse Power: 40W
  • Application: General-Purpose
  • Operating Temperature: -55°C to 125°C
  • Capacitance: 12pF @ 1MHz
  • REACH: Unaffected
