Same model may have multiple batches, images only for reference.

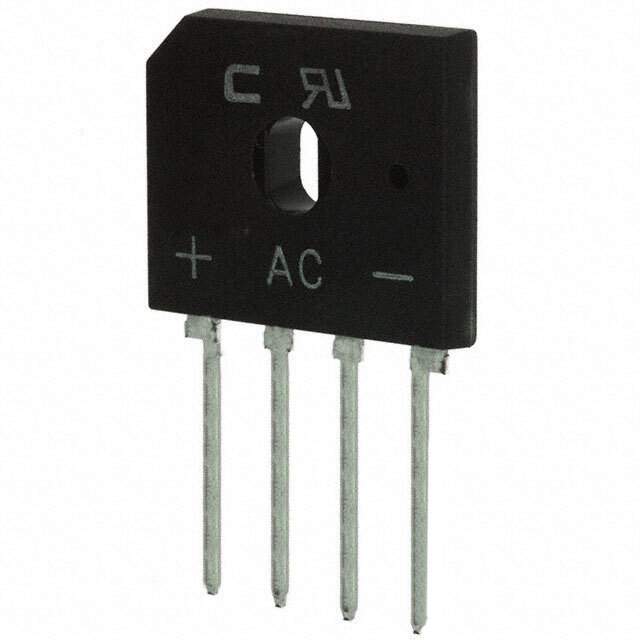

GBU1004-G Real Image
Same model may have multiple batches, images only for reference.

GBU1004-G

Part No GBU1004-G
Manufacturer Comchip Technology
Catalog Bridge Rectifiers
Description RECT BRIDGE GPP 400V 10A GBU / Diode Rectifier Bridge Single 400V 10A 4-Pin Case GBU Tube
Datasheet
GBU1004-G Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Discrete Semiconductor Products
Manufacturer Comchip Technology
Packaging Tube
Diode Type Single Phase
Technology Standard
Voltage - Peak Reverse (Maximum) 400V
Current - Average Rectified (Io) 10A
Voltage - Forward (Vf) (Maximum) @ If 1V @ 5A
Current - Reverse Leakage @ Vr 10μA @ 400V
Operating Temperature Range -55°C ~ 150°C (TJ)
Mounting Style Through Hole
Package 4-SIP, GBU
Manufacturer Package GBU
Win Source Part Number 775011-GBU1004-G
Popularity Medium
Supply and Demand Status Limited
Quantity per package 20
Family Name GBU1004
Introduction Date July 24, 2006
ECCN EAR99
Country of Origin Taiwan
Halogen Free Not Compliant
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian GBU1004-G CAD Model

Description

The Comchip Technology 775011-GBU1004-G is a single phase standard technology diode type electronic component.

  • Current average rectified: 10A
  • Current reverse leakage: 10μA @ 400V
  • Family name: GBU1004
  • Voltage peak reverse: 400V
  • Voltage forward: 1V @ 5A
  • Operating temperature range: -55°C ~ 150°C (TJ)
  • Estimated EOL date: 2027
