Same model may have multiple batches, images only for reference.

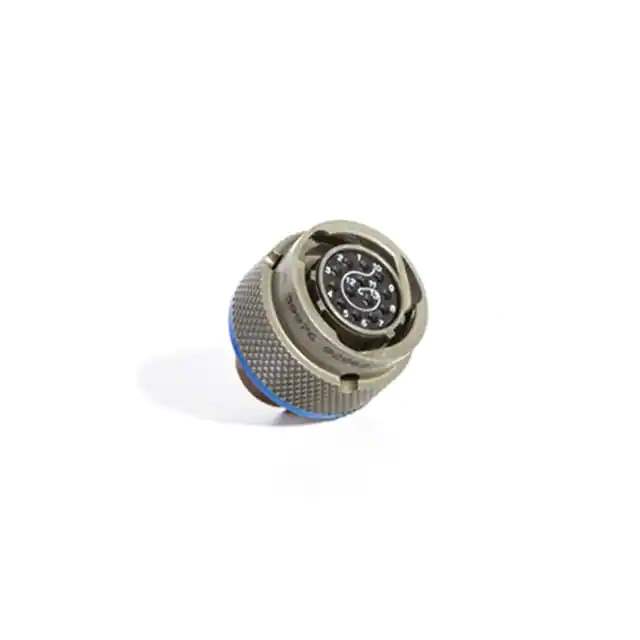

MS27474T8B35P Real Image
Same model may have multiple batches, images only for reference.

MS27474T8B35P

Part No MS27474T8B35P
Manufacturer Conesys
Catalog Circular Connectors - Assemblies
Description CONN RCPT MALE 6POS GOLD CRIMP / 6 Position Circular Connector Receptacle, Male Pins Crimp
Datasheet
MS27474T8B35P Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Connectors, Interconnects - Circular Connectors - Circular Connector Assemblies
Mfr Conesys
Series Military, MIL-DTL-38999 Series II
Package Box
Product Status Active
Connector Type Receptacle, Male Pins
Number of Positions 6
Shell Size - Insert 8-35
Mounting Type Panel Mount
Mounting Feature Bulkhead - Front Side Nut
Termination Crimp
Fastening Type Bayonet Lock
Orientation N (Normal)
Primary Material Metal
Shell Material Aluminum
Shell Finish Olive Drab Cadmium over Nickel
Contact Finish - Mating Gold
Color Olive Drab
Ingress Protection Environment Resistant
Shielding Unshielded
Temperature Range - Operating -65°C ~ 200°C
Contact Material Copper Alloy
Contact Finish Thickness - Mating 50.0µin (1.27µm)
Applications Aviation, Military
Base Product Number MS27474T8B
Standard Package 1 pcs
ECCN EAR99
HTSUS 8536.69.4020
Win Source Part Number 982104-MS27474T8B35P
Ultra Librarian 3D Model Ultra Librarian MS27474T8B35P CAD Model

Description

The 982104-MS27474T8B35P is a circular connector assembly from the Military MIL-DTL-38999 Series II.

  • Features: receptacle with male pins
  • Fastening Type: bayonet lock
  • Termination: crimp
  • Shell Size: 8-35
  • Contact Material: copper alloy with a gold finish for mating
  • Environment Resistance: environment resistant and has an ingress protection rating.
  • Applications: aviation and military applications.
  • Shell Material: aluminum with an olive drab cadmium over nickel finish.
  • Package: 1 piece
  • Mounting: bulkhead front side nut
  • Temperature Range: -65°C to 200°C.
  • Alternative parts: UTS7106P, MS27508E8B35P, MS27508E8F35S, MS27468T9B35SA, UTS7106S, and MS27508E8B35S.
  • Manufacturer: Conesys
  • Status: currently active in the market.
