Same model may have multiple batches, images only for reference.

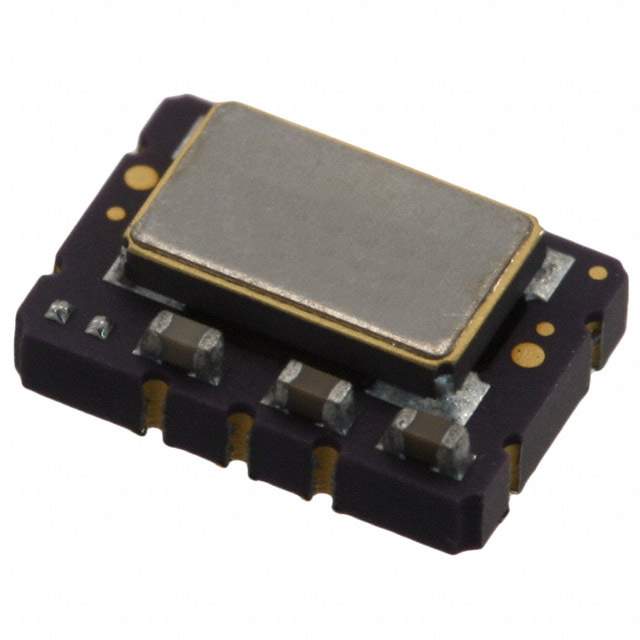

CSB21-012.688656M Real Image
Same model may have multiple batches, images only for reference.

CSB21-012.688656M

Part No CSB21-012.688656M
Manufacturer Connor-Winfield Corporation
Catalog Oscillators
Description XTAL OSC TCXO 12.688656MHZ LVCMO / 12.688656 MHz TCXO LVCMOS Oscillator 3.3V Enable/Disable 10-SMD, No Lead
Datasheet
CSB21-012.688656M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators>Oscillators
Mfr Connor-Winfield Corporation
Series CSB
Package Tape & Reel
Base Resonator Crystal
Type TCXO
Frequency 12.688656 MHz
Function Enable/Disable
Output LVCMOS
Voltage - Supply 3.3V
Frequency Stability ±200ppb
Absolute Pull Range (APR) -
Temperature Range - Operating -20°C ~ 55°C
Current - Supply (Max) 2.1mA
Ratings -
Mounting Type Surface Mount
Package / Case 10-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Current - Supply (Disable) (Max) -
Moisture Sensitivity Level (MSL) 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Standard Package 250 pcs
Win Source Part Number 1381839-CSB21-012.688656M
Ultra Librarian 3D Model Ultra Librarian CSB21-012.688656M CAD Model

Description

The CSB21-012.688656M is a TCXO (Temperature Compensated Crystal Oscillator) that belongs to the CSB series. It is designed for applications that require precise frequency stability.

  • Type: TCXO
  • Series: CSB
  • Frequency: 12.688656 MHz
  • Frequency Stability: ±200ppb
  • Function: Enable/Disable
  • Output: LVCMOS
  • Mounting Type: Surface Mount
  • Package / Case: 10-SMD, No Lead
  • Operating Temperature: -20°C ~ 55°C
