Same model may have multiple batches, images only for reference.

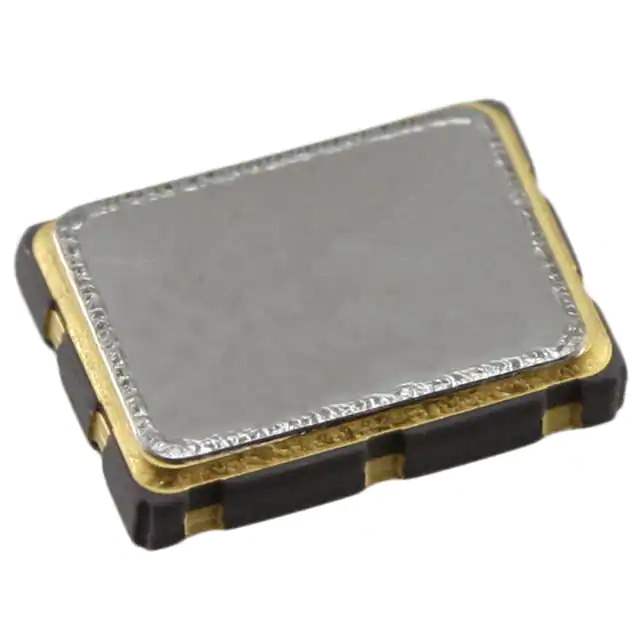

P143-125.0M Real Image
Same model may have multiple batches, images only for reference.

P143-125.0M

Part No P143-125.0M
Manufacturer Connor-Winfield Corporation
Catalog Oscillators
Description XTAL OSC XO 125.0000MHZ LVPECL / 125 MHz XO (Standard) LVPECL Oscillator 3.3V Enable/Disable 6-SMD, No Lead
Datasheet
P143-125.0M Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Crystals, Oscillators, Resonators - Oscillators
Mfr Connor-Winfield Corporation
Series P
Package Strip
Product Status Active
Base Resonator Crystal
Type XO (Standard)
Frequency 125 MHz
Function Enable/Disable
Output LVPECL
Voltage - Supply 3.3V
Frequency Stability ±20ppm
Temperature Range - Operating 0°C ~ 70°C
Current - Supply (Max) 90mA
Mounting Type Surface Mount
Package / Case 6-SMD, No Lead
Size / Dimension 0.276" L x 0.197" W (7.00mm x 5.00mm)
Height - Seated (Max) 0.079" (2.00mm)
Current - Supply (Disable) (Max) 30µA
Standard Package 25 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8542.39.0001
Win Source Part Number 888308-P143-125.0M
Ultra Librarian 3D Model Ultra Librarian P143-125.0M CAD Model

Description

The P143-125.0M is a crystal oscillator from the P series by Connor-Winfield Corporation.

  • Type: Standard XO (crystal oscillator)
  • Frequency: 125 MHz
  • Function: Enable/Disable
  • Output: LVPECL
  • Voltage Supply: 3.3V
  • Current Supply: 90mA
  • Mounting: Surface Mountable
  • Package: 6-SMD, no lead
  • Temperature Range: 0°C to 70°C
  • Status: Active
  • Package Quantity: 25 pieces (strip)
  • Frequency Stability: ±20ppm
