Same model may have multiple batches, images only for reference.

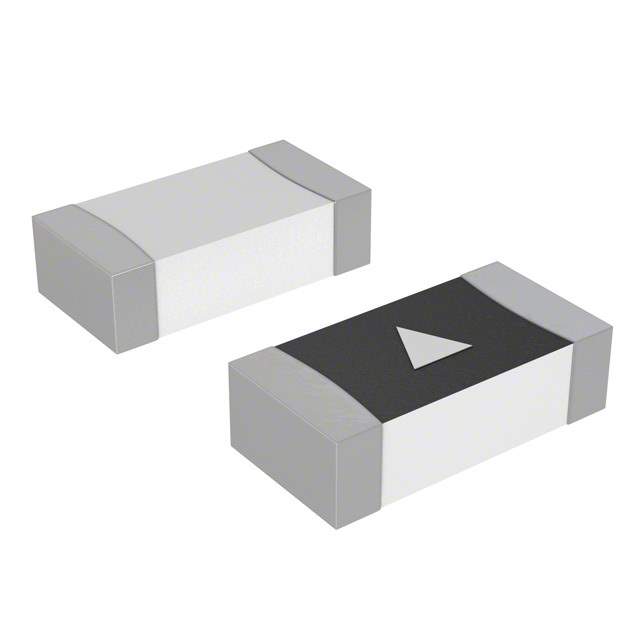

TR/3216LV1.5-R Real Image
Same model may have multiple batches, images only for reference.

TR/3216LV1.5-R

Part No TR/3216LV1.5-R
Manufacturer Cooper Bussmann, Inc.
Catalog Fuses
Description FUSE BRD MNT 1.5A 125VAC/DC 1206
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Manufacturer Eaton - Electronics Division
Packaging Reel
Fuse Type Board Mount (Cartridge Style Excluded)
Current Rating (Amps) 1.5A
Voltage Rating - AC 125V
Voltage Rating - DC 125V
Response Time Fast Blow
Manufacturer Package 1206 (3216 Metric)
Mounting Style SMD
Breaking Capacity at Rated Voltage 50A
Melting I2t 0.038
Approvals CSA, UL
Temperature Range - Operating -65°C ~ 125°C
Dimension 0.126" L x 0.063" W x 0.035" H (3.20mm x 1.60mm x 0.90mm)
DC Cold Resistance 0.26 Ohms
Manufacturer Pack Quantity 3,000
MSL Level 1 (Unlimited)
Popularity Medium
Supply and Demand Status Balance
Win Source Part Number 804391-TR/3216LV1.5-R
Ultra Librarian 3D Model Ultra Librarian TR/3216LV1.5-R CAD Model

Description

The Eaton 804391-TR/3216LV1.5-R is a fast blow board mount fuse.

  • Voltage Rating: 125V AC, 125V DC
  • Current Rating: 1.5A
  • DC Cold Resistance: 0.26 Ohms
  • Breaking Capacity: 50A @ rated voltage
  • Response Time: Fast Blow
  • Approvals: CSA, UL
  • Package: 1206 (3216 Metric)
  • Packaging: Reel (3,000 units)
  • Temperature Range: -65°C to 125°C
