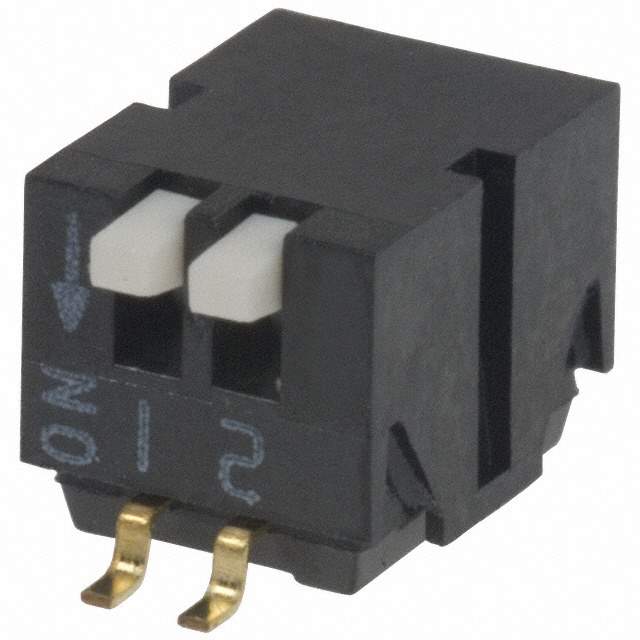

CHP-020B Real Image
Same model may have multiple batches, images only for reference.

CHP-020B

Part No CHP-020B
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 100MA 6V
Datasheet
CHP-020B Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Bulk
Status Active
Circuit SPST
Number of Positions 2
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.181" (4.60mm)
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.181" (4.60mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 1029195-CHP-020B
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHP-020B CAD Model

Description

The Copal Electronics Inc. switch, with Win Source Part Number 1029195-CHP-020B, is a surface mount, right angle SPST switch with a pitch of 0.050" (1.27mm), half.

  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Electrical Life: 1,000 cycles
  • Actuator Type: Piano
  • Actuator Level: Raised
  • Washable: No
  • Material: Polyphenylene Sulfide (PPS)
  • Temperature Range: -40°C to 85°C
  • Market Status: Open Market
  • Supply and Demand Status: Balanced
