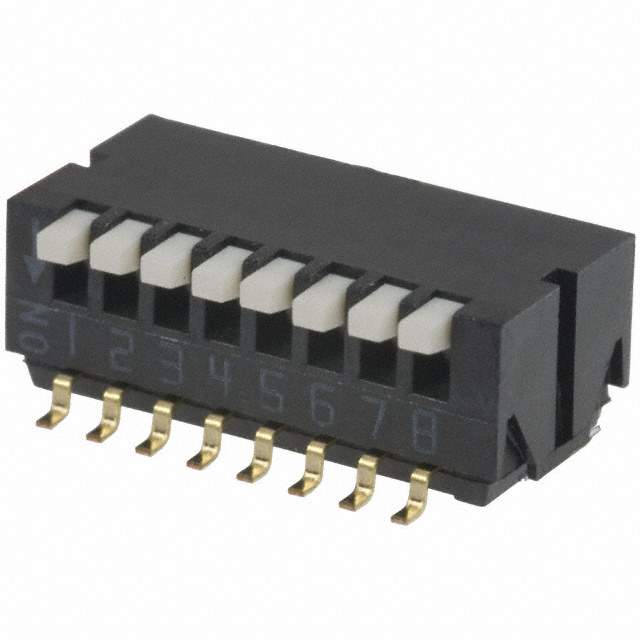

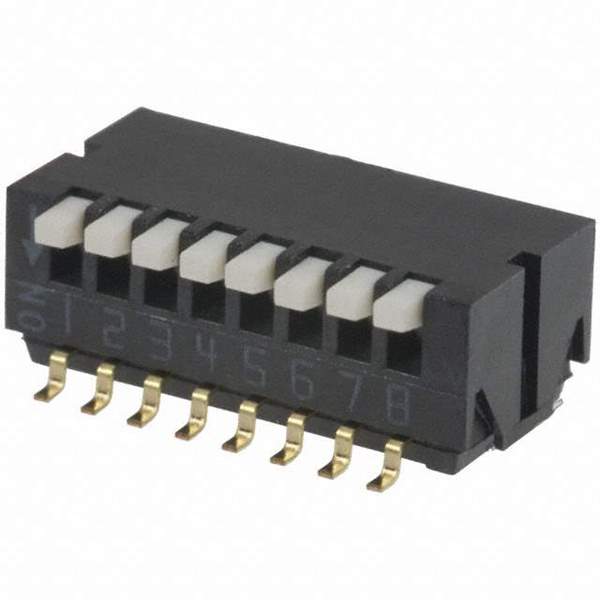

CHP-081TB Real Image
Same model may have multiple batches, images only for reference.

CHP-081TB

Part No CHP-081TB
Manufacturer Copal Electronics Inc.
Catalog DIP Switches
Description SWITCH PIANO DIP SPST 100MA 6V
Datasheet
CHP-081TB Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPST
Number of Positions 8
Current Rating 100mA
Voltage Rating 6VDC
Actuator Type Piano
Actuator Level Raised
Contact Finish Gold
Height Above Board 0.181" (4.60mm)
Mounting Surface Mount, Right Angle
Termination Style Gull Wing
Pitch 0.050" (1.27mm), Half
Washable No
Body Material Polyphenylene Sulfide (PPS)
Length 0.480" (12.19mm)
Temperature Range - Operating -40°C to 85°C
Electrical Life 1,000 Cycles
Win Source Part Number 1029207-CHP-081TB
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CHP-081TB CAD Model

Description

The Copal Electronics Inc. Switch is a high-quality component designed to provide reliable performance in various electronic applications.

  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Circuit: SPST
  • Actuator Level: Raised
  • Contact Finish: Gold
  • Mounting Type: Surface Mount, Right Angle
  • Height Above Board: 0.181" (4.60mm)
  • Length: 0.480" (12.19mm)
