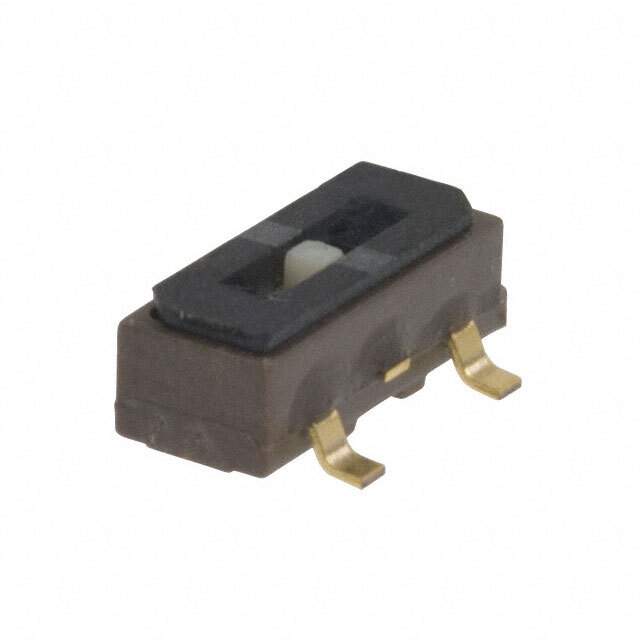

CJS-1201TB1 Real Image
Same model may have multiple batches, images only for reference.

CJS-1201TB1

Part No CJS-1201TB1
Manufacturer Copal Electronics Inc.
Catalog Slide Switches
Description SWITCH SLIDE SPDT 100MA 6V
Datasheet
CJS-1201TB1 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Switches
Manufacturer Copal Electronics Inc.
Packaging Reel - TR
Status Active
Circuit SPDT
Contact Timing Not Specified
Switch Function On-Off-On
Current Rating 100mA (DC)
Voltage Rating - DC 6V
Actuator Type Flush
Actuator Length Flush
Contact Finish Gold
Mounting SMD (SMT)
Termination Style Gull Wing
Actuator Material Polyamide (PA), Nylon
Switch Travel 0.60mm
Temperature Range - Operating -40°C to 85°C
Electrical Life 200 Cycles
Operating Force 600gf
Win Source Part Number 1029260-CJS-1201TB1
Popularity Medium
Supply and Demand Status Balance
Ultra Librarian 3D Model Ultra Librarian CJS-1201TB1 CAD Model

Description

The Copal Electronics Inc. switch is a SPDT circuit switch with a voltage rating of 6VDC and a current rating of 100mA.

  • Voltage Rating: 6VDC
  • Current Rating: 100mA
  • Mounting Type: SMD (SMT)
  • Termination Style: Gull-Wing
  • Actuator Type: Flush
  • Actuator Length: Flush
  • Switch Function: On-Off-On
  • Electrical Life: 200 cycles
  • Mechanical Life: -
  • Operating Force: 600gf
  • Temperature Range: -40°C to 85°C
