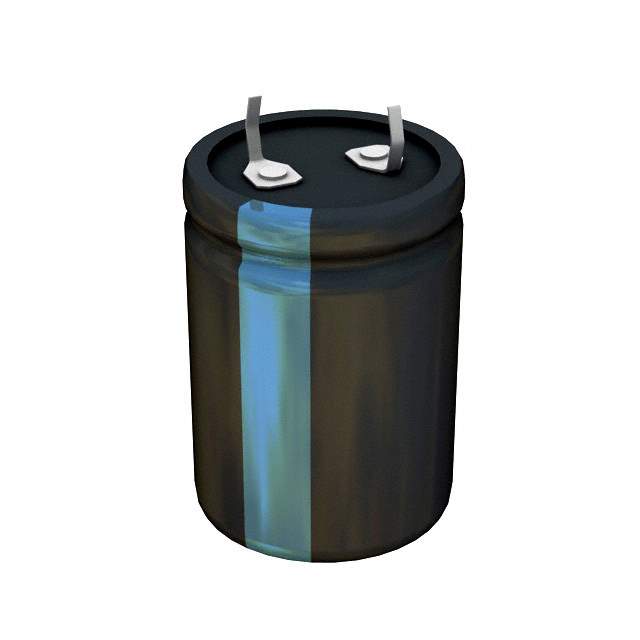

Same model may have multiple batches, images only for reference.

380LX562M050J032

Name: 380LX562M050J032
Brand: Cornell Dubilier Electronics (CDE)
SKU: 777734
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	380LX562M050J032
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 5600UF 20% 50V SNAP / Cap Aluminum Lytic 5600uF 50V 20% (25 X 35mm) Snap-In 10mm 0.06 Ohm 3400mA 3000h 85°C
Datasheet	380LX562M050J032 Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	380LX
Packaging	Bulk
Capacitance	5600μF
Tolerance	±20%
Voltage Rating DC	50V
ESR (Equivalent Series Resistance)	60 mOhm @ 120Hz
Lifetime @ Temp.	3000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	3.4A @ 120Hz
Ripple Current - High Frequency	3.9A @ 20kHz
Lead Spacing	0.394" (10.00mm)
Dimension	0.984" Dia (25.00mm)
Height - Seated (Maximum)	1.457" (37.00mm)
Mounting Style	Through Hole
Package	Radial, Can - Snap-In
Win Source Part Number	777734-380LX562M050J032
Popularity	Medium
Supply and Demand Status	Limited
Family Name	380LX
Introduction Date	September 12, 2002
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian 380LX562M050J032 CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) 380LX series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

Capacitance: 5600µF
Voltage Rating: 50V
Tolerance: ±20%
ESR: 60 mOhm @ 120Hz
Lifetime: 3000 hours @ 85°C
Polarization: Polarized
Package / Case: Radial can type snap-in
Mounting Type: Through Hole
Diameter: 0.984" (25.00mm)
Operating Temperature: -40°C to 85°C
