Same model may have multiple batches, images only for reference.

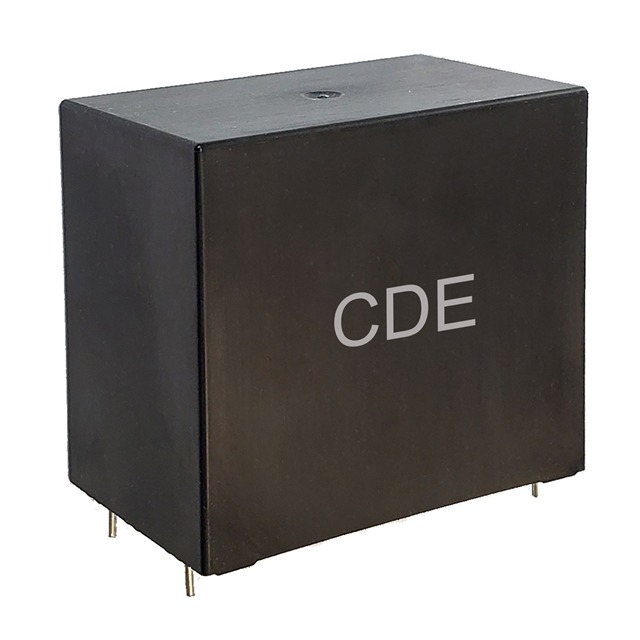

ALH305K401A082 Real Image
Same model may have multiple batches, images only for reference.

ALH305K401A082

Part No ALH305K401A082
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description 3UF 400VAC 32X37X22MM LS=27.5 / 3 µF Film Capacitor 400V Polypropylene (PP) Radial
Datasheet
ALH305K401A082 Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series ALH
Package Bulk
Capacitance 3 µF
Tolerance ±10%
Voltage Rating - AC 400V
Dielectric Material Polypropylene (PP)
ESR (Equivalent Series Resistance) 5.7 mOhms
Temperature Range - Operating -40°C ~ 105°C
Mounting Type Through Hole
Package / Case Radial
Dimension 1.260" L x 0.866" W (32.00mm x 22.00mm)
Height - Seated (Max) 1.488" (37.80mm)
Termination PC Pins
Lead Spacing 1.083" (27.50mm)
Applications Automotive; EMI, RFI Suppression
Ratings AEC-Q200
Features 85C/85% Humidity
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0020
Other Names 338-ALH305K401A082
Standard Package 70
Win Source Part Number 1047140-ALH305K401A082
Ultra Librarian 3D Model Ultra Librarian ALH305K401A082 CAD Model

Description

The Cornell Dubilier Electronics (CDE) ALH305K401A082 is a film capacitor with a capacitance of 3 µF and a tolerance of ±10%.

  • Manufacturer: Cornell Dubilier Electronics (CDE)
  • Part: ALH305K401A082
  • Capacitance: 3 µF
  • Tolerance: ±10%
  • Voltage Rating: 400V AC
  • Applications: Automotive and EMI/RFI suppression
  • Package: Radial
  • Seated Height: 1.488" (37.80mm)
  • AEC-Q200: Rated
  • ESR: 5.7 mOhms
  • Dielectric Material: Polypropylene (PP)
  • Temperature Range: -40°C to 105°C
  • Dimensions: 1.260" L x 0.866" W (32.00mm x 22.00mm)
  • Package Quantity: 70
  • ECCN: EAR99
  • MSL Level: 1 (unlimited)
  • HTSUS: 8532.25.0020
