Same model may have multiple batches, images only for reference.

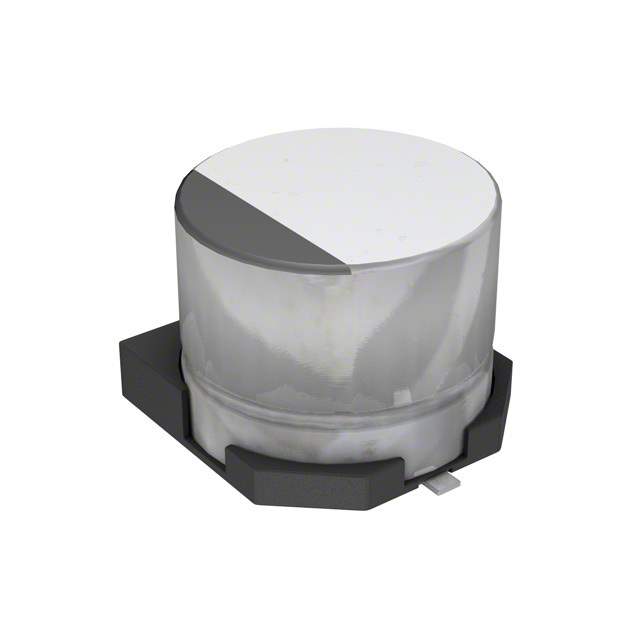

AVS226M63E16T-F Real Image
Same model may have multiple batches, images only for reference.

AVS226M63E16T-F

Part No AVS226M63E16T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 22UF 20% 63V SMD / Cap Aluminum Lytic 22uF 63V 20% (8 X 6.2mm) SMD 13.6 Ohm 40mA 2000h 85°C Automotive T/R
Datasheet
AVS226M63E16T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AVS
Packaging Reel package
Capacitance 22μF
Tolerance ±20%
Voltage Rating DC 63V
ESR (Equivalent Series Resistance) 13.6 Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 40mA @ 120Hz
Ripple Current - High Frequency 68mA @ 10kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.244" (6.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777766-AVS226M63E16T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AVS
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AVS226M63E16T-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) AVS series aluminum electrolytic capacitor is a high-quality component designed for general-purpose applications.

  • Capacitance: 22μF
  • Voltage Rating: 63V
  • ESR (Equivalent Series Resistance): 13.6 Ohm @ 120Hz
  • Lifetime: 2000 Hrs @ 85°C
  • Polarized: Yes
  • Package/Case: Radial, can - SMD
  • Mounting Type: SMD
  • Temperature Range: -40°C ~ 85°C
  • Dimension: 0.315" Dia (8.00mm)
  • Surface Mount Land Size: 0.327" L x 0.327" W (8.30mm x 8.30mm)
  • Series: AVS
  • Introduction Date: March 05, 2002
  • Popularity: Medium
  • Supply and Demand Status: Limited
  • Estimated EOL Date: 2027
  • ECCN: EAR99
