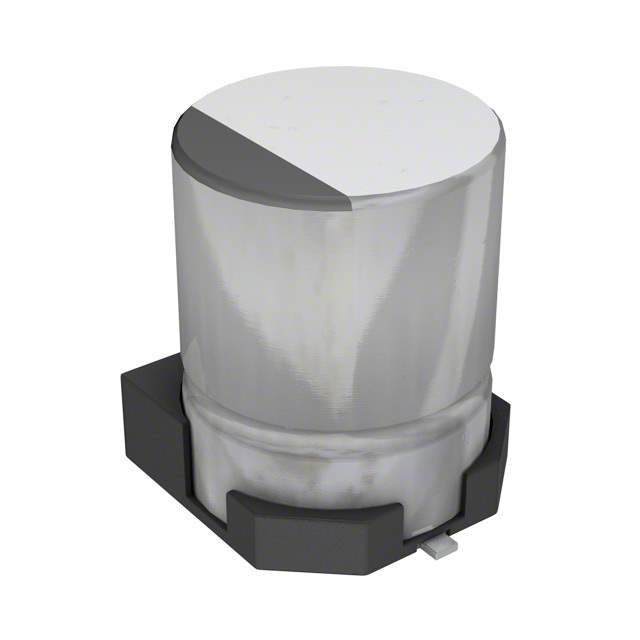

AVS336M63F24T-F Real Image
Same model may have multiple batches, images only for reference.

AVS336M63F24T-F

Part No AVS336M63F24T-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 33UF 20% 63V SMD / Cap Aluminum Lytic 33uF 63V 20% (8 X 10.2mm) SMD 9.1 Ohm 45mA 2000h 85°C Automotive T/R
Datasheet
AVS336M63F24T-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series AVS
Packaging Reel package
Capacitance 33μF
Tolerance ±20%
Voltage Rating DC 63V
ESR (Equivalent Series Resistance) 9.1 Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Operating Temperature Range -40°C ~ 85°C
Polarization Polar
Applications General
Ripple Current - Low Frequency 45mA @ 120Hz
Ripple Current - High Frequency 76.5mA @ 10kHz
Dimension 0.315" Dia (8.00mm)
Height - Seated (Maximum) 0.402" (10.20mm)
Surface Mount Land Size 0.327" L x 0.327" W (8.30mm x 8.30mm)
Mounting SMD
Package Radial, Can - SMD
Win Source Part Number 777777-AVS336M63F24T-F
Popularity Medium
Supply and Demand Status Limited
Family Name AVS
Introduction Date March 05, 2002
ECCN EAR99
Country of Origin United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian AVS336M63F24T-F CAD Model

Description

Cornell Dubilier Electronics (CDE) AVS series capacitor is a high-quality SMD component that is designed for general applications.

  • Capacitance: 33μF
  • Tolerance: ±20%
  • Voltage Rating: 63V DC
  • Package: radial, can - SMD
  • Mounting: SMD
  • Dielectric Material: aluminum electrolytic
  • ESR: 9.1 Ohm @ 120Hz
  • Operating Temperature Range: -40°C to 85°C
  • Dimension: 0.315" Dia (8.00mm)
  • Seated Height: 0.402" (10.20mm)
  • Series: AVS
