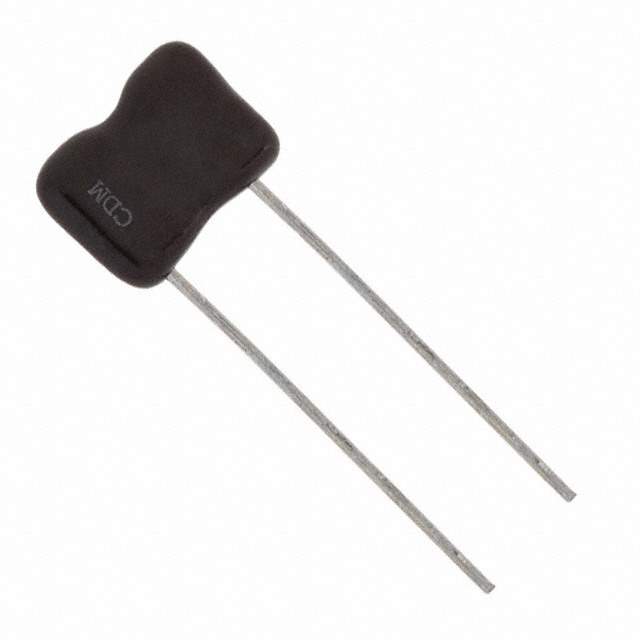

CD42FD503JO3 Real Image
Same model may have multiple batches, images only for reference.

CD42FD503JO3

Part No CD42FD503JO3
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 0.05UF 5% 500V RADIAL  /  0.05 µF Mica Capacitor 500 V Radial
Datasheet
CD42FD503JO3 Datasheet
Sample
Rohs State Need to verify
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CD42
Package Bulk
Capacitance 0.05 µF
Tolerance ±5%
Voltage - Rated 500 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Through Hole
Package / Case Radial
Lead Spacing 1.063" (27.00mm)
Features General Purpose
Dimension 1.480" L x 0.469" W (37.60mm x 11.90mm)
Height - Seated (Max) 0.921" (23.40mm)
RoHS Status RoHS non-compliant
MSL Level Not Applicable
REACH Status REACH Affected
ECCN EAR99
HTSUS 8532.29.0020
Standard Package 50
Win Source Part Number 981684-CD42FD503JO3
Ultra Librarian 3D Model Ultra Librarian CD42FD503JO3 CAD Model

Description

The Cornell Dubilier Electronics (CDE) electronic component with Win Source Part Number 981684-CD42FD503JO3 is a radial through-hole capacitor that has a capacitance of 0.05 µF and a voltage rating of 500 V.

  • Capacitance: 0.05 µF
  • Voltage Rating: 500 V
  • Type: general-purpose capacitor
  • Tolerance: ±5%
  • Height: 0.921" (23.40mm)
  • Lead Spacing: 1.063" (27.00mm)
  • RoHS: non-compliant
  • Category: Mica and PTFE Capacitors
