Same model may have multiple batches, images only for reference.

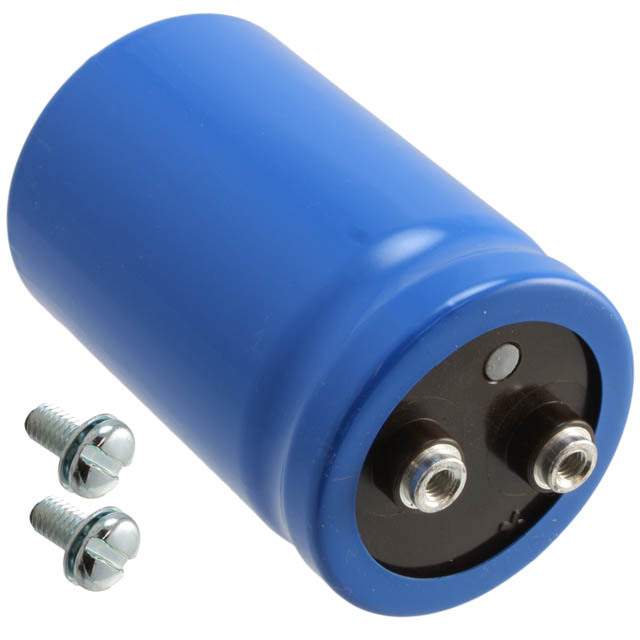

CGS133U050V3C Real Image
Same model may have multiple batches, images only for reference.

CGS133U050V3C

Part No CGS133U050V3C
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Description CAP ALUM 13000UF 50V SCREW  /  13000 µF 50 V Aluminum Electrolytic Capacitors Radial, Can - Screw Terminals 29mOhm @ 120Hz 2000 Hrs @ 85°C
Datasheet
CGS133U050V3C Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series CGS
Package Bulk
Capacitance 13000 µF
Tolerance -10%, +75%
Voltage - Rated 50 V
ESR (Equivalent Series Resistance) 29mOhm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 85°C
Temperature Range - Operating -40°C ~ 85°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 7.3 A @ 120 Hz
Ripple Current @ High Frequency 9.49 A @ 10 kHz
Dimension 2.000" Dia (50.80mm)
Height - Seated (Max) 3.125" (79.38mm)
Mounting Type Chassis Mount
Package / Case Radial, Can - Screw Terminals
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.22.0055
Other Names CGS133U050V3C-ND,2266-CGS133U050V3C,338-4010
Standard Package 1
Win Source Part Number 1185394-CGS133U050V3C
Ultra Librarian 3D Model Ultra Librarian CGS133U050V3C CAD Model

Description

The CGS133U050V3C capacitor from Cornell Dubilier Electronics (CDE) is a polarized aluminum electrolytic capacitor with a capacitance of 13000 µF and a voltage rating of 50 V.

  • Capacitance: 13000 µF
  • Voltage Rating: 50 V
  • ESR: 29mOhm @ 120Hz
  • Ripple Current: 7.3 A @ 120 Hz and 9.49 A @ 10 kHz
  • Height: 3.125" (79.38mm)
  • Diameter: 2.000" (50.80mm)
  • Mounting: chassis mountable
  • Package: radial, can-screw terminal
  • Lifetime: 2000 Hrs @ 85°C
  • Application: general-purpose
