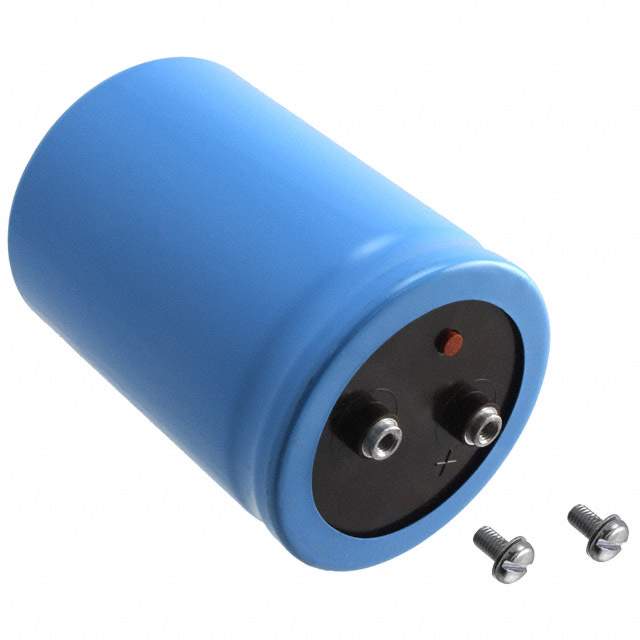

Same model may have multiple batches, images only for reference.

DCMC223U075AF2B

Name: DCMC223U075AF2B
Brand: Cornell Dubilier Electronics (CDE)
SKU: 777910
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	DCMC223U075AF2B
Manufacturer	Cornell Dubilier Electronics (CDE)
Catalog	Aluminum Capacitors
Description	CAP ALUM 22000UF 75V SCREW / Cap Aluminum Lytic 22000uF 75V -10% to 75% (34.93 X 142.88mm) Screw Terminal 0.021 Ohm 10800mA 2000h 85°C
Datasheet	DCMC223U075AF2B Datasheet
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Categories	Capacitors
Manufacturer	Cornell Dubilier Electronics (CDE)
Series	DCMC
Packaging	Bulk
Capacitance	22000μF
Tolerance	-10%, +75%
Voltage Rating DC	75V
ESR (Equivalent Series Resistance)	21.4 mOhm @ 120Hz
Lifetime @ Temp.	2000 Hrs @ 85°C
Operating Temperature Range	-40°C ~ 85°C
Polarization	Polar
Applications	General
Ripple Current - Low Frequency	10.8A @ 120Hz
Ripple Current - High Frequency	12.096A @ 10kHz
Lead Spacing	0.500" (12.70mm)
Dimension	1.375" Dia (34.93mm)
Height - Seated (Maximum)	5.687" (144.45mm)
Mounting	Chassis Mount
Package	Radial, Can - Screw Terminals
Win Source Part Number	777910-DCMC223U075AF2B
Popularity	Medium
Supply and Demand Status	Limited
Family Name	DCMC
Introduction Date	April 01, 2005
ECCN	EAR99
Country of Origin	United States of America
Estimated EOL Date	2027
Ultra Librarian 3D Model	Ultra Librarian DCMC223U075AF2B CAD Model

Alternative Products

Description

The Cornell Dubilier Electronics (CDE) DCMC series aluminum electrolytic capacitors are a reliable and cost-effective solution for general purpose applications.

Capacitance: 22000μF
Voltage Rating: 75V
Tolerance: -10% to +75%
ESR: 21.4mOhm @ 120Hz
Lifetime: 2000 hours @ 85°C
Polarity: Polarized
Package: Radial, Can-Screw Terminals
Diameter: 1.375”
Height: 5.687”
Mounting: Chassis
Lead Spacing: 0.500”
Operating Temperature Range: -40°C to 85°C
Packaging: Bulk
