Same model may have multiple batches, images only for reference.

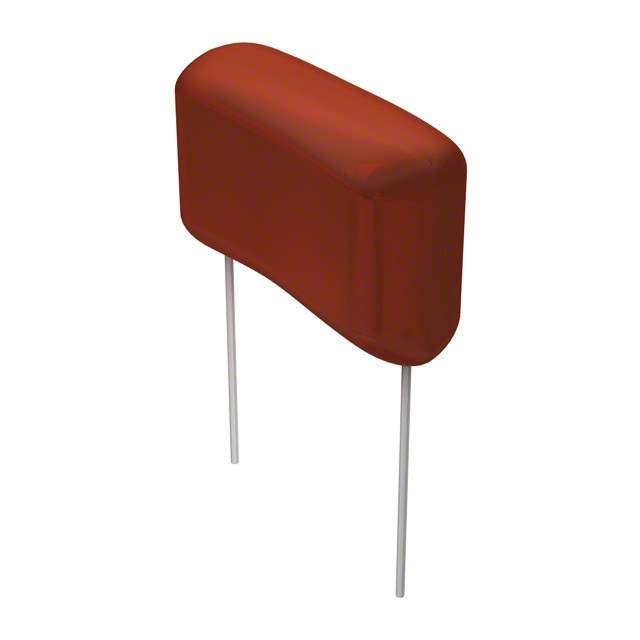

DPPM16D82K-F Real Image
Same model may have multiple batches, images only for reference.

DPPM16D82K-F

Part No DPPM16D82K-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 8200PF 10% 1.6KVDC RAD / Cap Film 0.0082uF 1600V PP 10% (31 X 11 X 20mm) Radial 26.5mm 105°C
Datasheet
DPPM16D82K-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series DPPM
Packaging Bulk
Capacitance 8200pF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1600V (1.6kV)
Dielectric Material Polypropylene (PP), Metallized
Operating Temperature Range -40°C ~ 105°C
Mounting Style Through Hole
Package Radial
Dimension 1.220" L x 0.433" W (31.00mm x 11.00mm)
Height - Seated (Maximum) 0.846" (21.50mm)
Termination PC Pins
Lead Spacing 1.043" (26.50mm)
Applications High Frequency, Switching; High Pulse, DV/DT; Snubber
Win Source Part Number 777854-DPPM16D82K-F
Popularity Medium
Supply and Demand Status Limited
Family Name DPPM
Introduction Date September 12, 2002
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date 2027
Ultra Librarian 3D Model Ultra Librarian DPPM16D82K-F CAD Model

Description

Cornell Dubilier Electronics (CDE) DPPM series capacitor is a radial through-hole component with a capacitance of 8200pF. The capacitor has a voltage rating - AC of 500V and voltage rating - DC of 1600V (1.6kV).

  • Capacitance: 8200pF
  • Voltage Rating (AC): 500V
  • Voltage Rating (DC): 1600V (1.6kV)
  • Lead Spacing: 1.043 inches (26.50mm)
  • Dimensions: 1.220 inches L x 0.433 inches W (31.00mm x 11.00mm)
  • Operating Temperature Range: -40°C to 105°C
  • Packaging: Bulk
  • Dielectric Material: Polypropylene (PP), metallized
  • Applications: High-frequency, switching, high pulse, DV/DT and snubber
