Same model may have multiple batches, images only for reference.

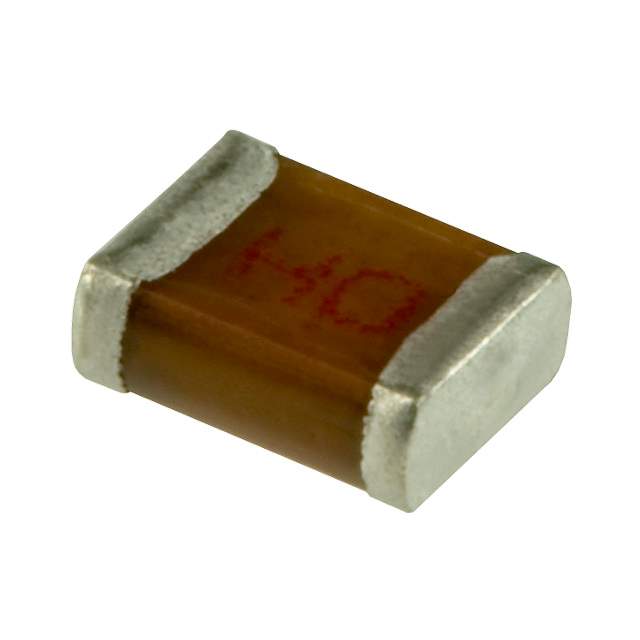

MC08EA200J-F Real Image
Same model may have multiple batches, images only for reference.

MC08EA200J-F

Part No MC08EA200J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 20PF 5% 100V 0805  /  20 pF Mica Capacitor 100 V 0805 (2012 Metric)
Datasheet
MC08EA200J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MC
Package Bulk
Capacitance 20 pF
Tolerance ±5%
Voltage - Rated 100 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting SMD (SMT)
Package / Case 0805 (2012 Metric)
Features RF, High Q, Low Loss
Dimension 0.079" L x 0.049" W (2.00mm x 1.25mm)
Height - Seated (Max) 0.055" (1.40mm)
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.29.0020
Other Names 338-1101,MC08EA200JF
Standard Package 100
Win Source Part Number 997990-MC08EA200J-F
Ultra Librarian 3D Model Ultra Librarian MC08EA200J-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) 997990-MC08EA200J-F is a mica and PTFE capacitor that belongs to the MC series.

  • Description: It is a high-Q, low-loss capacitor that is suitable for use in RF applications.
  • Package: Bulk
  • Capacitance: 20 pF
  • Voltage Rating: 100 V
  • Tolerance: ±5%
  • Dielectric Material: Mica
  • Package/Case: 0805 (2012 Metric)
  • Temperature Range: -55°C to 125°C
  • Dimensions: 0.079" L x 0.049" W (2.00mm x 1.25mm)
