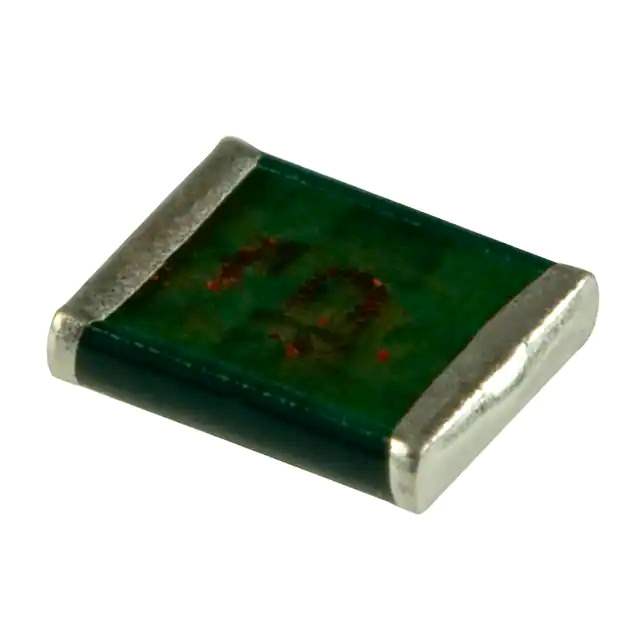

MC12ED120J-F Real Image
Same model may have multiple batches, images only for reference.

MC12ED120J-F

Part No MC12ED120J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 12PF 5% 500V 1210 / 12 pF Mica Capacitor 500 V 1210 (3225 Metric)
Datasheet
MC12ED120J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MC
Package Bulk
Product Status Active
Capacitance 12 pF
Tolerance ±5%
Voltage - Rated 500 V
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 1210 (3225 Metric)
Features RF, High Q, Low Loss
Size / Dimension 0.126" L x 0.098" W (3.20mm x 2.50mm)
Height - Seated (Max) 0.079" (2.00mm)
Standard Package 100 pcs
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Win Source Part Number 926059-MC12ED120J-F
Ultra Librarian 3D Model Ultra Librarian MC12ED120J-F CAD Model

Description

The MC12ED120J-F is a mica and PTFE capacitor designed for RF applications. Manufactured by Cornell Dubilier Electronics (CDE), this capacitor is part of the MC series known for its high Q and low loss characteristics.

  • Capacitance: 12 pF
  • Tolerance: ±5%
  • Voltage Rating: 500 V
  • Package: 1210 (3225 Metric) surface mount package
  • Temperature Range: -55°C to 125°C
  • Package: bulk package
  • Pieces: 100
  • Status: Active product
