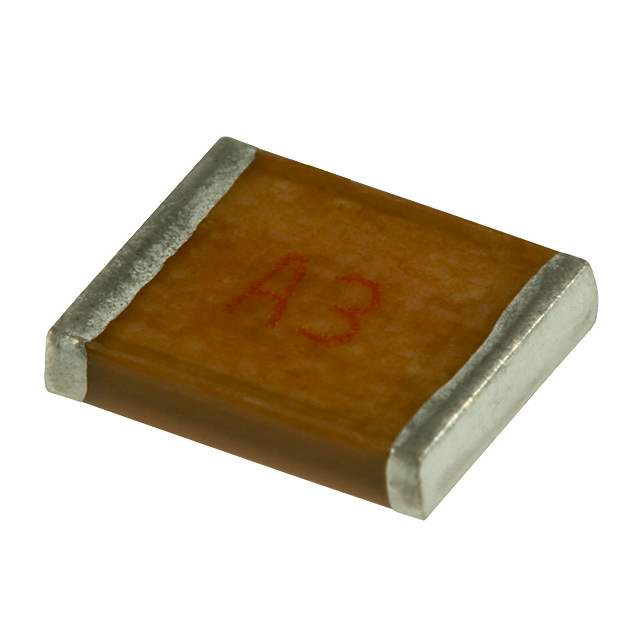

MC22FF561J-F Real Image
Same model may have multiple batches, images only for reference.

MC22FF561J-F

Part No MC22FF561J-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 560PF 5% 1KV 2220 / 560 pF Mica Capacitor 1 kV 2220 (5750 Metric)
Datasheet
MC22FF561J-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors - Mica and PTFE Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series MC
Package Bulk
Capacitance 560 pF
Tolerance ±5%
Voltage - Rated 1 kV
Dielectric Material Mica
Temperature Range - Operating -55°C ~ 125°C
Mounting Type Surface Mount
Package / Case 2220 (5750 Metric)
Features RF, High Q, Low Loss
Size / Dimension 0.224" L x 0.197" W (5.70mm x 5.00mm)
Height - Seated (Max) 0.157" (4.00mm)
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.29.0020
Win Source Part Number 1337987-MC22FF561J-F
Ultra Librarian 3D Model Ultra Librarian MC22FF561J-F CAD Model

Description

The MC22FF561J-F capacitor is a mica and PTFE capacitor from the MC series, designed for use in high Q, low loss, and RF applications. MC22FF561J-F from MC.

  • Package: Bulk
  • Size / Dimension: 0.224" L x 0.197" W (5.70mm x 5.00mm)
  • Height - Seated (Max): 0.157" (4.00mm)
  • Capacitance: 560 pF
  • Tolerance: ±5%
  • Voltage - Rated: 1 kV
  • Dielectric Material: Mica
  • Mounting Type: Surface Mount
  • Package / Case: 2220 (5750 Metric)
  • Operating Temperature: -55°C to 125°C
