Same model may have multiple batches, images only for reference.

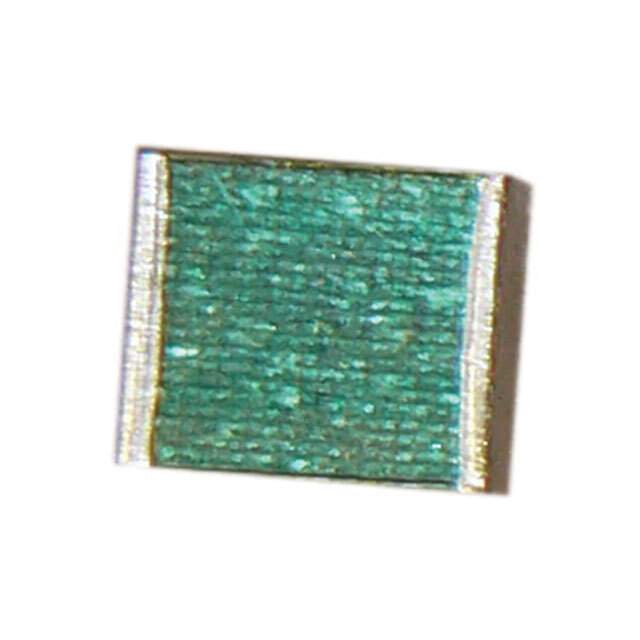

MCH38FM101J Real Image
Same model may have multiple batches, images only for reference.

MCH38FM101J

Part No MCH38FM101J
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Mica and PTFE Capacitors
Description CAP MICA 100PF 5% 4KV SMD / Cap Mica 100pF 4000V 5% (9.65 X 9.65 X 4.06mm) SMD 125°C Bulk
Datasheet
MCH38FM101J Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Series MCH
Packaging Bulk
Capacitance 100pF
Tolerance ±5%
Voltage Rating DC 4000V
Dielectric Material Mica
Operating Temperature Range -55°C ~ 125°C
Mounting SMD
Package Nonstandard SMD
Features RF, High Q, Low Loss
Dimension 0.380" L x 0.380" W (9.65mm x 9.65mm)
Height - Seated (Maximum) 0.160" (4.06mm)
Win Source Part Number 774610-MCH38FM101J
Popularity Medium
Supply and Demand Status Limited
Family Name MCH
Introduction Date March 30, 2006
ECCN EAR99
Country of Origin Mexico, United States of America
Estimated EOL Date Obsolete / End of life
Ultra Librarian 3D Model Ultra Librarian MCH38FM101J CAD Model

Description

The Cornell Dubilier Electronics (CDE) 774610-MCH38FM101J is an RF, high Q, low loss capacitor manufactured by Cornell Dubilier Electronics (CDE).

  • Capacitance: 100pF
  • Voltage Rating: 4000V
  • Dielectric Material: Mica
  • Tolerance: ±5%
  • Package Type: Nonstandard SMD
  • Dimensions: 0.380" L x 0.380" W (9.65mm x 9.65mm)
  • Polarization: Polarized
  • Operating Temperature: -55°C to 125°C
