Same model may have multiple batches, images only for reference.

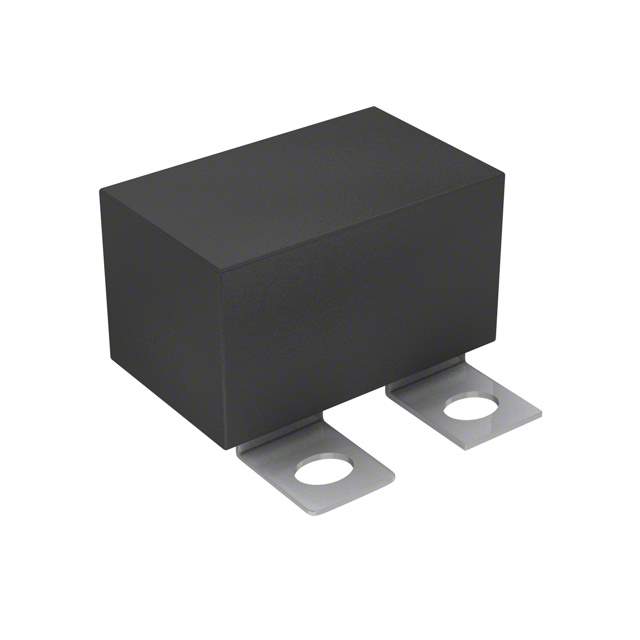

SCD105K102D3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD105K102D3Z25-F

Part No SCD105K102D3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 1UF 10% 1KVDC SCREW / 1 µF Film Capacitor 500V 1000V (1kV) Polypropylene (PP), Metallized Rectangular Box
Datasheet
SCD105K102D3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1000V (1kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 5 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.850" L x 1.142" W (47.00mm x 29.00mm)
Height - Seated (Max) 1.051" (26.70mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Standard Package 1
Win Source Part Number 1019157-SCD105K102D3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD105K102D3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD series capacitor is a film capacitor used in snubber applications.

  • Capacitance: 1 µF
  • Tolerance: ±10%
  • Voltage Rating (AC): 500V
  • Voltage Rating (DC): 1000V
  • ESR: 5 mOhms
  • Dielectric Material: Polypropylene (PP), Metallized
  • Mounting Type: Chassis Mount
  • Package/Case: Rectangular Box
  • Height - Seated (Max): 1.051" (26.70mm)
  • Lead Spacing: 1.000" (25.40mm)
  • Operating Temperature: -55°C ~ 85°C
  • Size / Dimension: 1.850" L x 1.142" W (47.00mm x 29.00mm)
