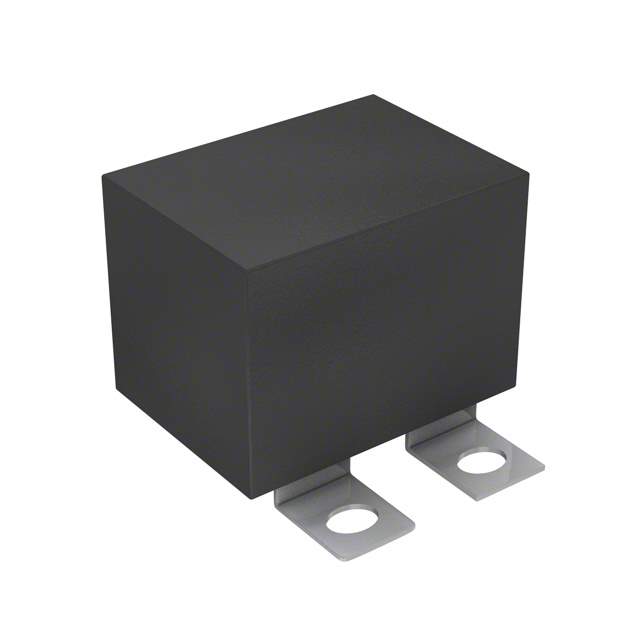

SCD155K122A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD155K122A3Z25-F

Part No SCD155K122A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Description CAP FILM 1.5UF 10% 1.2KVDC SCREW
Datasheet
SCD155K122A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Categories Capacitors
Manufacturer Cornell Dubilier Electronics (CDE)
Packaging Bulk
Status Active
Capacitance 1.5μF
Tolerance ±10%
Voltage Rating - AC 580V
Voltage Rating - DC 1200V (1.2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR 4 mOhm
Temperature Range - Operating -40°C to 85°C
Mounting Chassis Mount
Dimension 2.051" L x 1.500" W (52.10mm x 38.10mm)
Height - Seated (Max) 1.500" (38.10mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Win Source Part Number 1094906-SCD155K122A3Z25-F
Popularity Medium
Supply and Demand Status Sufficient
Ultra Librarian 3D Model Ultra Librarian SCD155K122A3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD155K122A3Z25-F is a polypropylene (PP), metallized snubber capacitor with a capacitance of 1.5μF and voltage rating of 580V AC/1200V DC.

  • Capacitance: 1.5μF
  • Voltage Rating: 580V AC/1200V DC
  • Tolerance: ±10%
  • ESR: 4 mOhm
  • Mounting: Chassis mount
  • Lead Spacing: 1.000" (25.40mm)
  • Height - Seated (Max): 1.500" (38.10mm)
  • Temperature Range: -40°C to 85°C
  • Rating: AEC-Q200
  • Lifetime: 1000 Hrs @ 105°C
  • Application: Snubber applications
