Same model may have multiple batches, images only for reference.

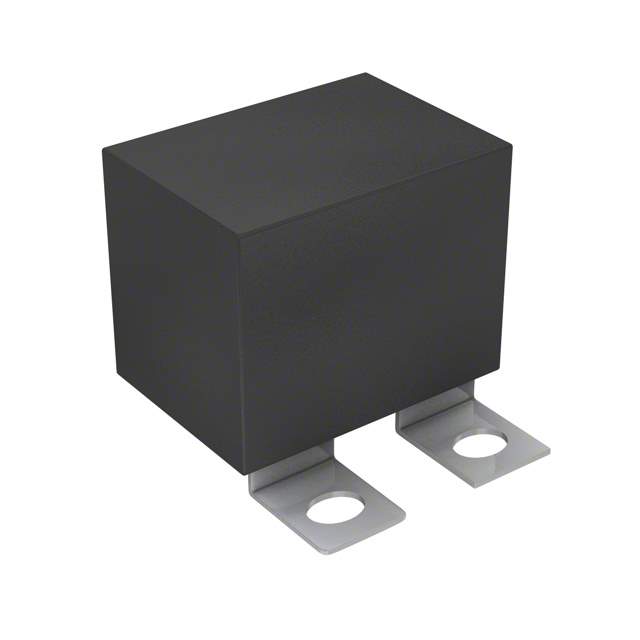

SCD205K601A3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD205K601A3Z25-F

Part No SCD205K601A3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD205K601A3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 2 µF
Tolerance ±10%
Voltage Rating - AC 300V
Voltage Rating - DC 600V
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 3 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 1.776" L x 1.272" W (45.10mm x 32.30mm)
Height - Seated (Max) 1.402" (35.60mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302662-SCD205K601A3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD205K601A3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD series film capacitor is a high-performance capacitor designed for use in snubber applications.

  • Capacitance: 2 µF
  • Voltage Rating: 300V AC and 600V DC
  • Dielectric Material: Polypropylene (PP), metallized
  • ESR (Equivalent Series Resistance): 3 mOhms
  • Mounting: Chassis mounted
  • Termination: Screw terminals
  • Height: 1.402" (35.60mm) tall
  • Lead Spacing: 1.000" (25.40mm)
  • Packaging: Packaged in a rectangular box
  • Temperature Range: -55°C to 85°C
