Same model may have multiple batches, images only for reference.

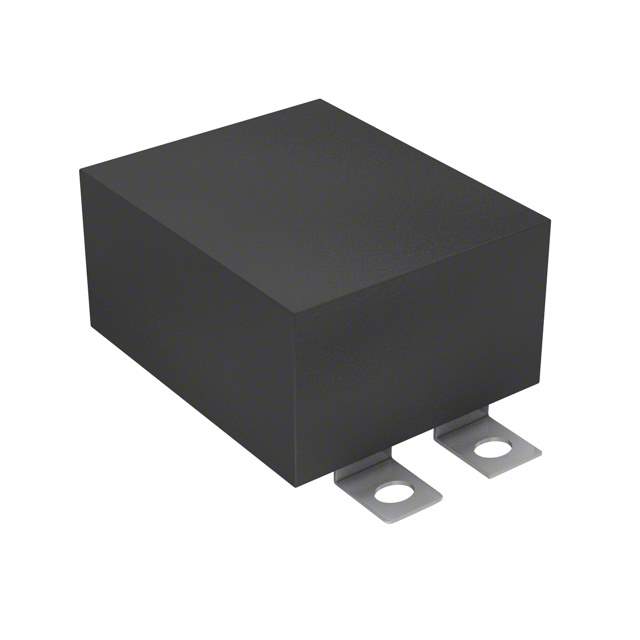

SCD305K122C3Z25-F Real Image
Same model may have multiple batches, images only for reference.

SCD305K122C3Z25-F

Part No SCD305K122C3Z25-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SCD305K122C3Z25-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SCD
Package Bulk
Capacitance 3 µF
Tolerance ±10%
Voltage Rating - AC 500V
Voltage Rating - DC 1200V (1.2kV)
Dielectric Material Polypropylene (PP), Metallized
ESR (Equivalent Series Resistance) 5 mOhms
Temperature Range - Operating -55°C ~ 85°C
Mounting Type Chassis Mount
Package / Case Rectangular Box
Dimension 2.476" L x 3.000" W (62.90mm x 76.20mm)
Height - Seated (Max) 1.500" (38.10mm)
Termination Screw Terminals
Lead Spacing 1.000" (25.40mm)
Applications Snubber
Other Names 338-4162,SCD305K122C3Z25-F,2266-SCD305K122C3Z25-F
Standard Package 1
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8532.25.0080
Win Source Part Number 1302660-SCD305K122C3Z25-F
Ultra Librarian 3D Model Ultra Librarian SCD305K122C3Z25-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) SCD series film capacitor is a snubber capacitor with a capacitance of 3µF and a voltage rating of 1200V (1.2kV).

  • Capacitance: 3µF
  • Voltage Rating: 1200V (1.2kV)
  • Tolerance: ±10%
  • ESR (Equivalent Series Resistance): 5 mOhms
  • Package: Rectangular box
  • Dimension: 2.476 inches (62.90mm) in length and 3.000 inches (76.20mm) in width
  • Height: 1.500 inches (38.10mm)
  • Mounting: Designed for chassis mounting
  • Dielectric Material: Polypropylene (PP), Metallized
  • Application: Suitable for use in various applications including power electronics, inverters, and motor drives
