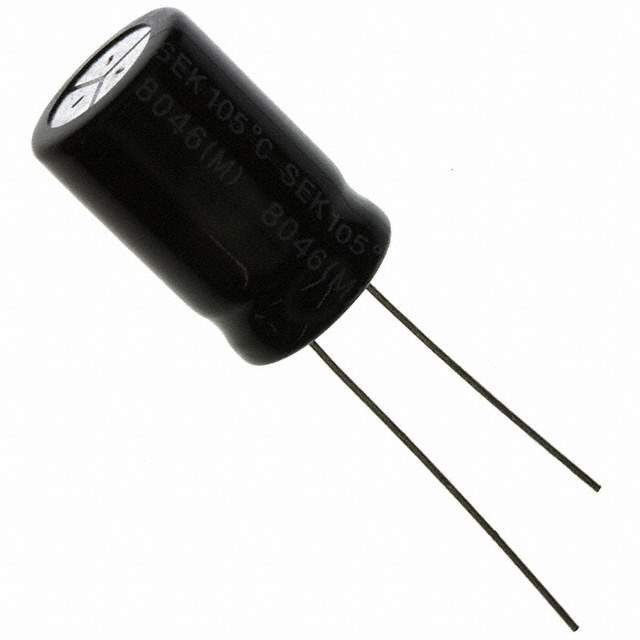

SEK470M160ST Real Image
Same model may have multiple batches, images only for reference.

SEK470M160ST

Part No SEK470M160ST
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Aluminum Capacitors
Datasheet
SEK470M160ST Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Aluminum Electrolytic Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SEK
Package Bulk
Capacitance 47 µF
Tolerance ±20%
Voltage - Rated 160 V
ESR (Equivalent Series Resistance) 4.23Ohm @ 120Hz
Lifetime @ Temp. 2000 Hrs @ 105°C
Temperature Range - Operating -40°C ~ 105°C
Polarization Polar
Applications General Purpose
Ripple Current @ Low Frequency 270 mA @ 120 Hz
Ripple Current @ High Frequency 432 mA @ 10 kHz
Lead Spacing 0.197" (5.00mm)
Dimension 0.512" Dia (13.00mm)
Height - Seated (Max) 0.827" (21.00mm)
Mounting Type Through Hole
Package / Case Radial, Can
Other Names 2266-SEK470M160ST
Standard Package 100
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.22.0020
Win Source Part Number 1308351-SEK470M160ST
Ultra Librarian 3D Model Ultra Librarian SEK470M160ST CAD Model

Description

The Cornell Dubilier Electronics (CDE) SEK470M160ST is a radial, can aluminum electrolytic capacitor.

  • Capacitance: 47 µF
  • Tolerance: ±20%
  • Rated Voltage: 160 V
  • Lead Spacing: 0.197" (5.00mm)
  • ESR: 4.23Ohm @ 120Hz
  • Lifetime: 2000 hrs @ 105°C
  • Polarized: Yes
  • Applications: General-purpose
  • Mounting: Through hole
  • Diameter: 0.512" (13.00mm)
  • Height: 0.827" (21.00mm)
