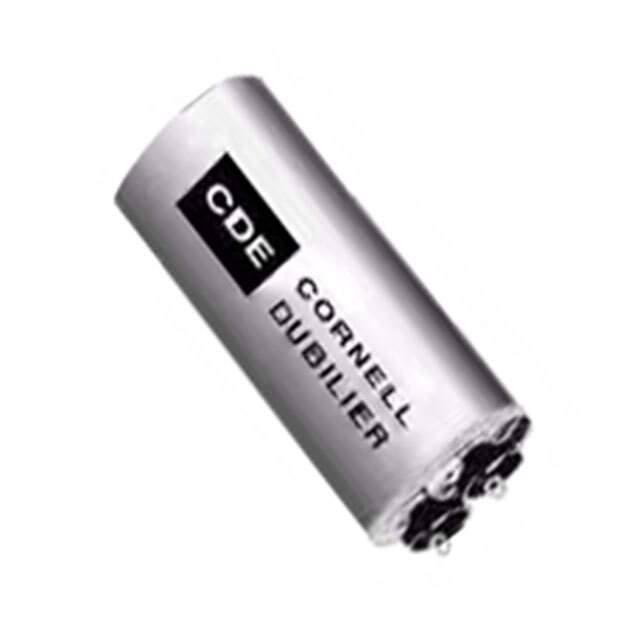

SNU102K105R-F Real Image
Same model may have multiple batches, images only for reference.

SNU102K105R-F

Part No SNU102K105R-F
Manufacturer Cornell Dubilier Electronics (CDE)
Catalog Film Capacitors
Datasheet
SNU102K105R-F Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Capacitors>Film Capacitors
Mfr Cornell Dubilier Electronics (CDE)
Series SNU
Package Bulk
Capacitance 1 µF
Tolerance ±10%
Voltage Rating - AC 1000Vpk (1KVPK)
Dielectric Material Paper, Metallized
Temperature Range - Operating -50°C ~ 70°C
Mounting Type Chassis Mount
Package / Case Radial, Can
Dimension 2.100" L x 1.810" W (53.34mm x 45.97mm)
Height - Seated (Max) 2.134" (54.20mm)
Termination Solder Lug
Lead Spacing 0.810" (20.57mm)
Applications High Pulse, DV/DT; Snubber
Standard Package 10
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8532.25.0040
Win Source Part Number 1302433-SNU102K105R-F
Ultra Librarian 3D Model Ultra Librarian SNU102K105R-F CAD Model

Description

The Cornell Dubilier Electronics (CDE) film capacitor product with the Win Source Part Number 1302433-SNU102K105R-F is a part of the Capacitors category.

  • Series: SNU
  • Capacitance: 1 μF
  • Tolerance: ±10%
  • Termination: Solder Lug
  • Packaging: Bulk
  • Standard Package: 10
  • Voltage Rating (AC): 1000Vpk (1KVPK)
  • Applications: High Pulse, DV/DT; Snubber
  • Height - Seated (Max): 2.134" (54.20mm)
  • Lead Spacing: 0.810" (20.57mm)
  • Dielectric Material: Paper, Metallized
  • Mounting Type: Chassis Mount
  • Package/Case: Radial, Can
  • Temperature Range - Operating: -50°C ~ 70°C
  • REACH Status: REACH Unaffected
  • HTSUS: 8532.25.0040
