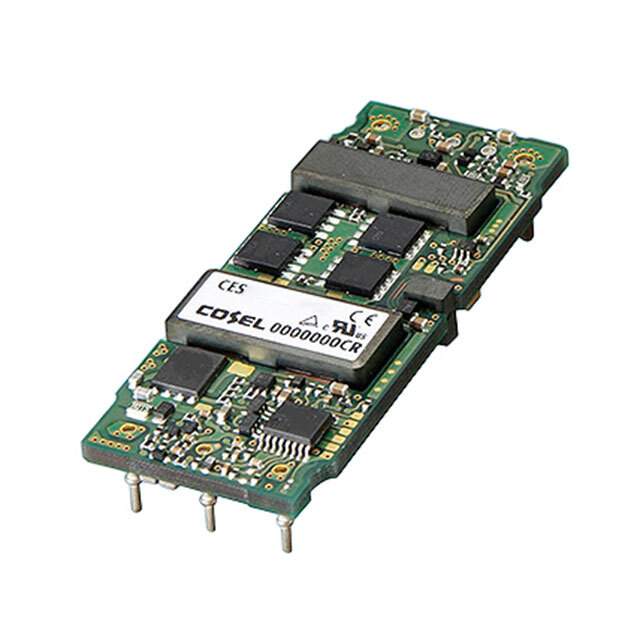

Same model may have multiple batches, images only for reference.

CES24120-6

Name: CES24120-6
Brand: Cosel USA, Inc.
SKU: 1051813
Availability: InStock
Rating: 4.91 (5 reviews)

Get a Quote

Part No	CES24120-6
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 12V / Isolated Module DC DC Converter 1 Output 12V 6A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	CES (80W)
Package	Box
Product Status	Last Time Buy
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	12V
Current - Output (Max)	6A
Voltage - Isolation	1.5 kV
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OTP, OVP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	91%
Mounting Type	Through Hole
Package / Case	8-DIP Module
Dimension	2.28" L x 0.90" W x 0.33" H (57.9mm x 22.8mm x 8.5mm)
Base Product Number	CES24120
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1160
Standard Package	1
Win Source Part Number	1051813-CES24120-6
Ultra Librarian 3D Model	Ultra Librarian CES24120-6 CAD Model

Alternative Products

Description

The CES24120-6 is a 80W isolated DC-DC converter from Cosel USA, Inc.

Voltage Isolation: 1.5kV
Input Voltage Range: 18V to 36V
Output Voltage: 12V
Maximum Output Current: 6A
Features: remote on/off, over-current protection, over-temperature protection, and over-voltage protection
Applications: ITE (commercial)
Operating Temperature: -40°C to 85°C
