Same model may have multiple batches, images only for reference.

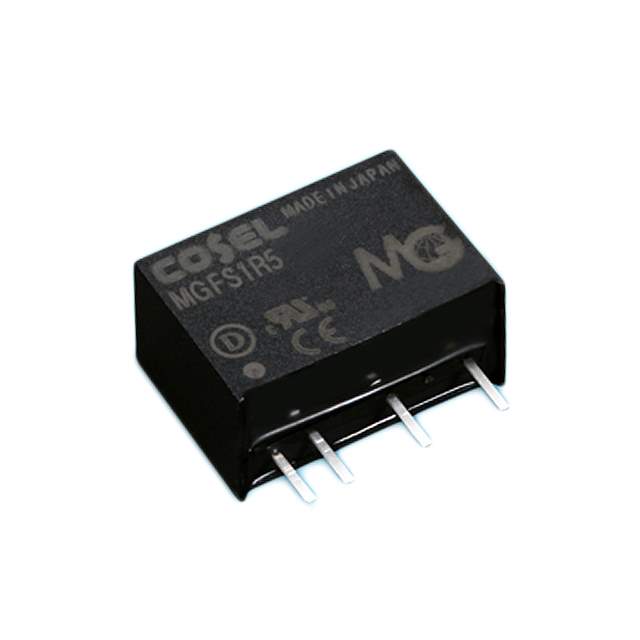

MGS1R5123R3 Real Image
Same model may have multiple batches, images only for reference.

MGS1R5123R3

Part No MGS1R5123R3
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 3.3V / Isolated Module DC DC Converter 1 Output 3.3V 400mA 9V - 18V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGS (1.5W)
Package Tube
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 9V
Voltage - Input (Max) 18V
Voltage - Output 1 3.3V
Current - Output (Max) 400mA
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 80%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
Base Product Number MGS1R5123
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336737-MGS1R5123R3
Ultra Librarian 3D Model Ultra Librarian MGS1R5123R3 CAD Model

Description

The Cosel USA MGS1R5123R3 is a 1.5W isolated module DC-DC converter that is designed for ITE (Commercial) applications.

  • Overcurrent Protection: Yes
  • Packaging: Tube
  • Dimension: 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
  • Number of Outputs: Single
  • Maximum Output Current: 400mA
  • Output Voltage: 3.3V
  • Input Voltage: 9V to 18V
  • Efficiency: 80%
  • Operating Temperature: -40°C ~ 85°C
  • Series: MGS
