Same model may have multiple batches, images only for reference.

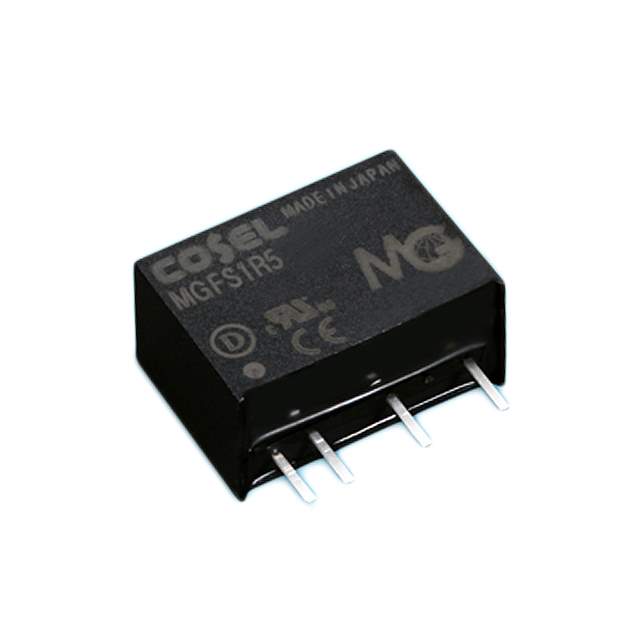

MGS1R52412 Real Image
Same model may have multiple batches, images only for reference.

MGS1R52412

Part No MGS1R52412
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 12V / Isolated Module DC DC Converter 1 Output 12V 130mA 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGS (1.5W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 12V
Current - Output (Max) 130mA
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 82%
Mounting Type Through Hole
Package / Case 4-SIP Module
Size / Dimension 0.67" L x 0.33" W x 0.47" H (17.0mm x 8.5mm x 12.0mm)
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336742-MGS1R52412
Ultra Librarian 3D Model Ultra Librarian MGS1R52412 CAD Model

Description

The Cosel USA MGS (1.5W) series is a high-quality isolated module power supply that is perfect for board mount DC DC converters.

  • Package: Box
  • Outputs: One
  • Voltage Input: 18V to 36V
  • Voltage Isolation: 1.5 kV
  • Features: OCP, remote on/off
  • Efficiency: 82%
  • Application: ITE (commercial)
  • Package: 4-SIP module
  • California Prop 65 Compliant: Yes
  • ECCN: EAR99
