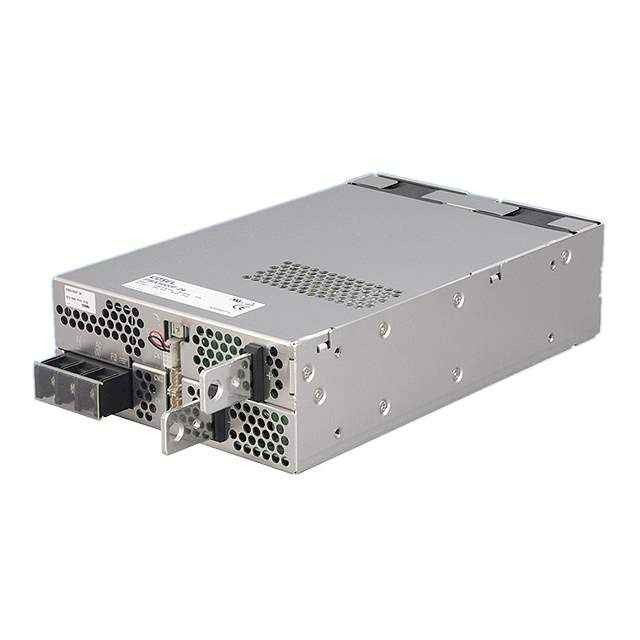

PBA1000F-15 Real Image
Same model may have multiple batches, images only for reference.

PBA1000F-15

Part No PBA1000F-15
Manufacturer Cosel USA, Inc.
Catalog External/Internal (Off - Board) AC DC Converters
Description AC/DC CONVERTER 15V / Enclosed AC DC Converters 1 Output 15V 85 ~ 264 VAC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - External/Internal (Off-Board) - AC DC Converters
Mfr Cosel USA, Inc.
Series PBA (1000W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC
Voltage - Output 1 15V
Current - Output 1 70 A
Applications ITE (Commercial)
Voltage - Isolation 3 kV
Efficiency 84%
Temperature Range - Operating -20°C ~ 70°C (With Derating)
Mounting Type Chassis Mount
Size / Dimension 9.45" L x 5.91" W x 2.40" H (240.0mm x 150.1mm x 61.0mm)
Approval Agency CE, cURus, TUV
Minimum Load Required No
Base Product Number PBA1000
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9540
California Prop 65 Warning Information
Win Source Part Number 1348810-PBA1000F-15
Ultra Librarian 3D Model Ultra Librarian PBA1000F-15 CAD Model

Description

The Cosel PBA1000F-15 is an enclosed AC/DC converter that is perfect for ITE (Commercial) applications.

  • Voltage Input: 85 ~ 264 VAC
  • Output Voltage: 15V
  • Output Current: 70A
  • Efficiency: 84%
  • Minimum Load: No Minimum Load
  • Mounting: Chassis Mount
  • Operating Temperature: -20°C to 70°C
  • Series: PBA (1000W)
  • Approvals: CE, cURus, TUV
