Same model may have multiple batches, images only for reference.

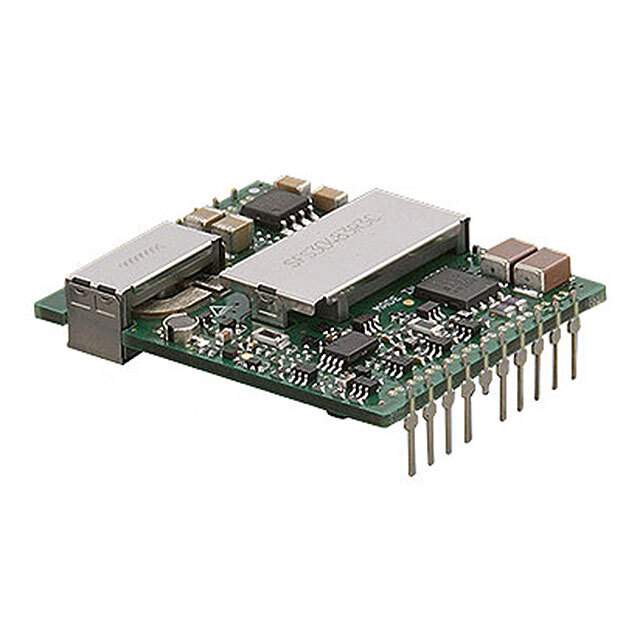

SFS302405C Real Image
Same model may have multiple batches, images only for reference.

SFS302405C

Part No SFS302405C
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 6A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series SFS (30W)
Package Box
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 6A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP, OVP, UVLO
Temperature Range - Operating -40°C ~ 85°C
Efficiency 92%
Mounting Type Through Hole
Package / Case 20-DIP Module, 17 Leads
Size / Dimension 1.52" L x 1.23" W x 0.31" H (38.7mm x 31.2mm x 8.0mm)
Base Product Number SFS302405
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1336719-SFS302405C
Ultra Librarian 3D Model Ultra Librarian SFS302405C CAD Model

Description

The SFS302405C is a DC-DC converter module from Cosel USA Inc.

  • Type: Isolated Module
  • Output: Single
  • Current - Output (Max): 6A
  • Voltage - Input (Min): 18V
  • Voltage - Input (Max): 36V
  • Voltage - Output: 5V
  • Mounting Type: Through Hole
  • Package / Case: 20-DIP Module, 17 Leads
  • Operating Temperature: -40°C ~ 85°C
  • Efficiency: 92%
  • Series: SFS
  • Features: Remote On/Off, OCP, OVP, UVLO
  • Application: ITE (Commercial)
