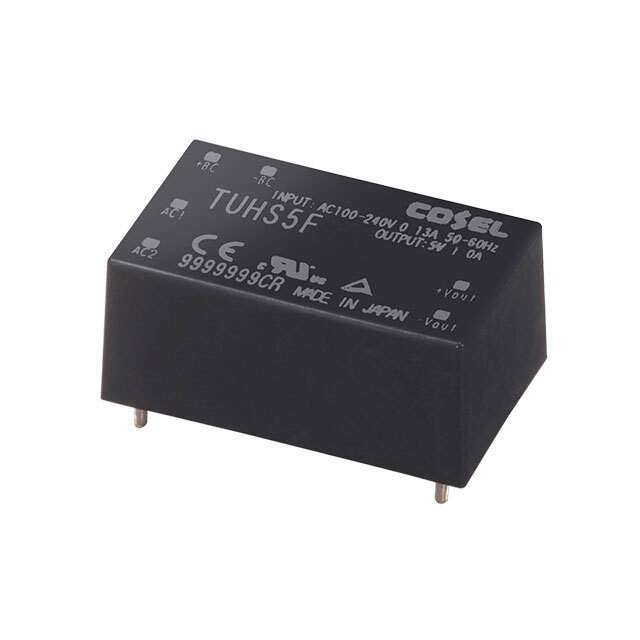

TUHS5F24 Real Image
Same model may have multiple batches, images only for reference.

TUHS5F24

Part No TUHS5F24
Manufacturer Cosel USA, Inc.
Catalog Board Mount AC DC Converters
Description AC/DC CONVERTER 24V 5W / Enclosed AC DC Converters 1 Output 24V 220mA 85 ~ 264 VAC, 120 ~ 370 VDC Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - AC DC Converters
Mfr Cosel USA, Inc.
Series TUH (5W)
Package Box
Type Enclosed
Number of Outputs 1
Voltage - Input 85 ~ 264 VAC, 120 ~ 370 VDC
Voltage - Output 1 24V
Current - Output (Max) 220mA
Power (Watts) 5 W
Applications ITE (Commercial)
Features Universal Input
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 83%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.13" L x 0.69" W x 0.50" H (28.7mm x 17.5mm x 12.7mm)
Approval Agency CE, cURus
Line Regulation 96mV
Load Regulation 150mV
Base Product Number TUHS5
Standard Package 1
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9510
California Prop 65 Warning Information
Win Source Part Number 1342781-TUHS5F24
Ultra Librarian 3D Model Ultra Librarian TUHS5F24 CAD Model

Description

The Cosel TUHS5F24 is an enclosed AC to DC converter that belongs to the TUH (5W) series.

  • Series: TUH (5W)
  • Input Voltage: 85 ~ 264 VAC
  • Output Voltage: 24V
  • Maximum Output Current: 220mA
  • Efficiency: 83%
  • Line Regulation: 96mV
  • Load Regulation: 150mV
  • Application: Commercial
  • Mounting Type: Through Hole
  • Operating Temperature: -40°C ~ 85°C (with derating)
  • Approvals: CE and cURus
