Same model may have multiple batches, images only for reference.

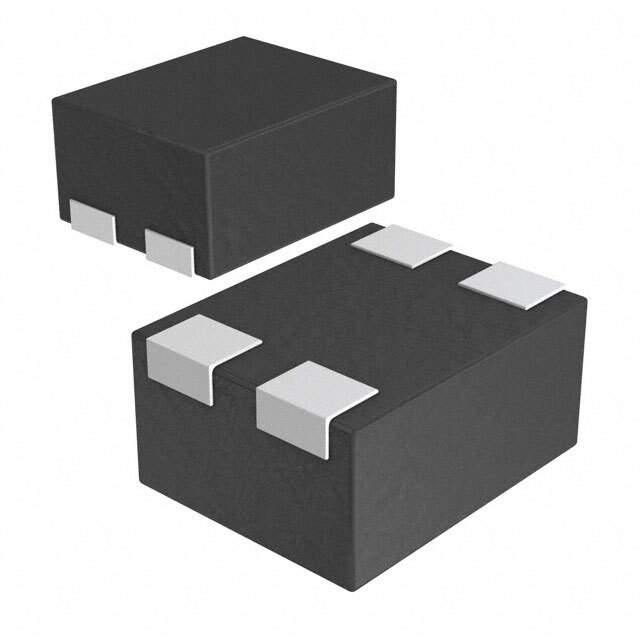

TTB12G51-900-2P-T20 Real Image
Same model may have multiple batches, images only for reference.

TTB12G51-900-2P-T20

Part No TTB12G51-900-2P-T20
Manufacturer TDK Corporation
Catalog Balun
Description BALUN 174MHZ-860MHZ 50/50 4SMD / RF Balun 174MHz ~ 860MHz 50 / 50Ohm 4-SMD
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF and Wireless - Balun
Mfr TDK Corporation
Package Tape & Reel
Product Status Obsolete
Frequency Range 174MHz ~ 860MHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 180°
Insertion Loss (Max) 1.0dB
Package / Case 4-SMD
Mounting Type Surface Mount
Standard Package 4,000
MSL Level 1 (Unlimited)
ECCN EAR99
HTSUS 8504.31.2000
Win Source Part Number 1352226-TTB12G51-900-2P-T20
Ultra Librarian 3D Model Ultra Librarian TTB12G51-900-2P-T20 CAD Model

Description

The Balun is an obsolete product that is ideal for use in electronic devices. TDK Corporation RF and Wireless manufactures the balun.

  • Status: Obsolete
  • Manufacturer Part Number: 1352226-TTB12G51-900-2P-T20
  • Package: Tape and Reel
  • Frequency Range: 174MHz ~ 860MHz
  • Impedance: 50 / 50Ohm
  • Phase Difference: 180 degrees
  • Insertion Loss: 1.0dB
  • Return Loss: Not Specified
  • Mounting Type: Surface Mount
  • Package/Case: 4-SMD
