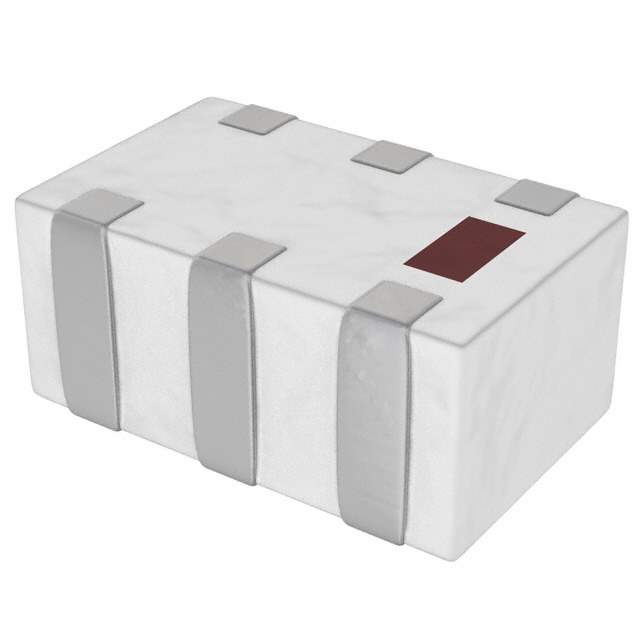

1850BL15B050E Real Image
Same model may have multiple batches, images only for reference.

1850BL15B050E

Part No 1850BL15B050E
Manufacturer Johanson Technology Inc.
Catalog Balun
Description BALUN 1.7GHZ-2GHZ 50/50 0805  /  RF Balun 1.7GHz ~ 2GHz 50 / 50Ohm 0805 (2012 Metric)
Datasheet
1850BL15B050E Datasheet
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category RF/IF and RFID>Balun
Mfr Johanson Technology Inc.
Series 1850
Package Tape & Reel
Frequency Range 1.7GHz ~ 2GHz
Impedance - Unbalanced/Balanced 50 / 50Ohm
Phase Difference 180° ±10°
Insertion Loss (Max) 1.0dB
Return Loss (Min) 9.5dB
Package / Case 0805 (2012 Metric)
Mounting SMD (SMT)
MSL Level 1 (Unlimited)
REACH Status REACH Unaffected
ECCN EAR99
HTSUS 8504.31.4035
Other Names 1850BL15B050,712-1030-6,712-1030-1,712-1030-2
Standard Package 4,000
Win Source Part Number 973913-1850BL15B050E
Ultra Librarian 3D Model Ultra Librarian 1850BL15B050E CAD Model

Description

The 1850BL15B050E balun from Johanson Technology Inc. is a surface mount device with a frequency range of 1.7GHz to 2GHz.

  • Mounting Type: Surface Mount
  • Frequency Range: 1.7GHz to 2GHz
  • Impedance (Balanced/Unbalanced): 50/50 Ohms
  • Phase Difference: 180 degrees +/-10 degrees
  • Insertion Loss: 1.0dB (Maximum)
  • Return Loss: 9.5dB (Minimum)
  • Package Size: 0805 (2012 Metric)
  • Standard Package: 4,000
  • REACH: Unaffected
  • ECCN: EAR99
