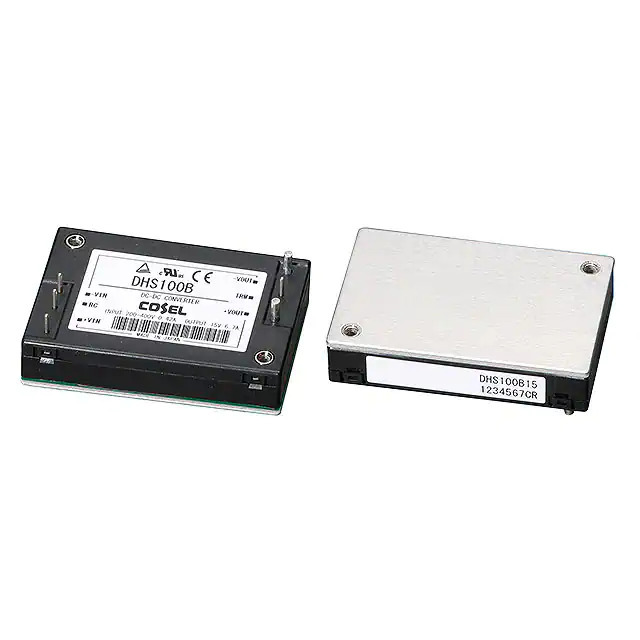

Same model may have multiple batches, images only for reference.

DHS100B15

Name: DHS100B15
Brand: Cosel USA, Inc.
SKU: 1355452
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	DHS100B15
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V 101W / Isolated Module DC DC Converter 1 Output 15V 6.7A 200V - 400V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cosel USA, Inc.
Series	DHS (100W)
Package	Box
Product Status	Active
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	200V
Voltage - Input (Max)	400V
Voltage - Output 1	15V
Voltage - Output 2	-
Voltage - Output 3	-
Voltage - Output 4	-
Current - Output (Max)	6.7A
Power (Watts)	101 W
Applications	ITE (Commercial)
Features	-
Temperature Range - Operating	-40°C ~ 100°C (With Derating)
Efficiency	86%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	2.30" L x 1.47" W x 0.50" H (58.4mm x 37.3mm x 12.7mm)
Supplier Device Package	-
Base Product Number	DHS100
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	1355452-DHS100B15
Ultra Librarian 3D Model	Ultra Librarian DHS100B15 CAD Model

Alternative Products

Description

The Cosel DHS100B15 is a 100W isolated module DC/DC converter designed for board mount applications.

Temperature Range: -40°C to 100°C
Package: 6-DIP module
Series: DHS
Manufacturer: Cosel USA, Inc.
Mounting: Through hole
Input Voltage: 200V to 400V
Output Voltage: 15V
Maximum Output Current: 6.7A
Power: 101W
Efficiency: 86%
Application: ITE (Commercial)
