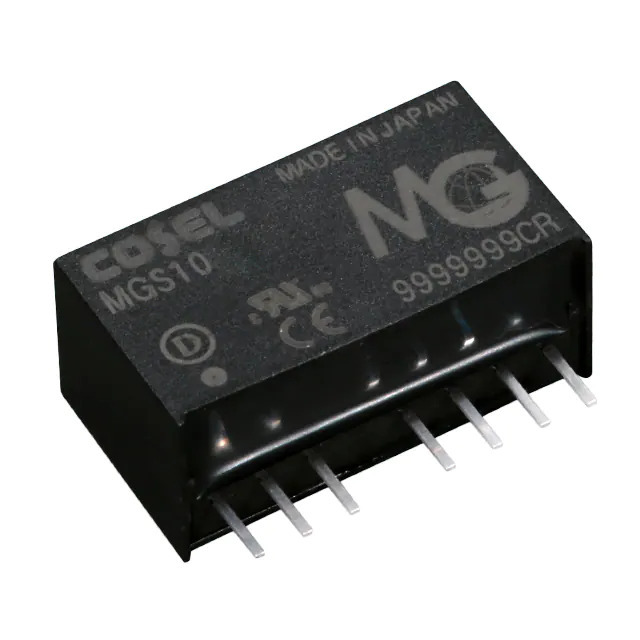

MGS102405 Cosel USA, Inc.
Same model may have multiple batches, images only for reference.

MGS102405

Part No MGS102405
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 2A 18V - 36V Input
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGS (10W)
Package Tube
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Voltage - Output 2 -
Voltage - Output 3 -
Current - Output (Max) 2A
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Features Remote On/Off, OCP
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 7-SIP Module
Size / Dimension 0.87" L x 0.37" W x 0.47" H (22.0mm x 9.5mm x 12.0mm)
Supplier Device Package -
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 1355413-MGS102405
Ultra Librarian 3D Model Ultra Librarian MGS102405 CAD Model

Description

The Cosel USA MGS (10W) series is a high-performance power supply module designed for board mount applications.

  • Operating Temperature: -40°C to 85°C
  • Type: Isolated
  • Output Current (Max): 2A
  • Input Voltage (Max): 36V
  • Output Voltage: 5V
  • Efficiency: 89%
  • Features: Remote On/Off, Overcurrent Protection (OCP)
  • Package Size: 7-SIP Module
  • Application: ITE (Commercial)
