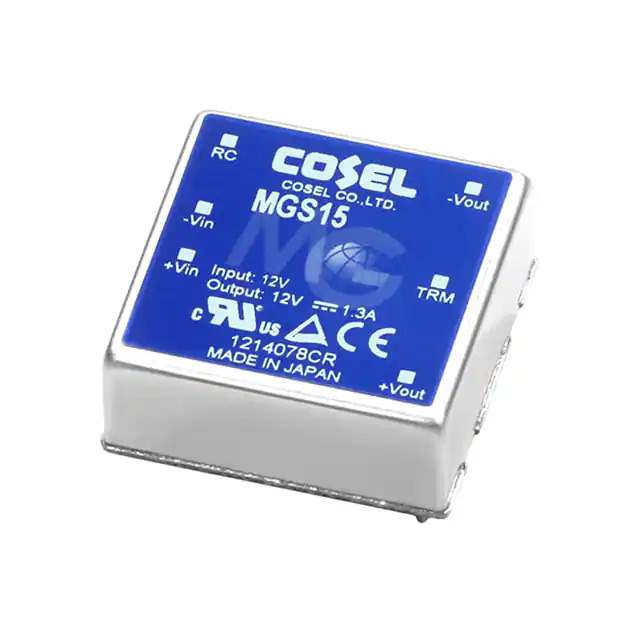

MGS152405-R Real Image
Same model may have multiple batches, images only for reference.

MGS152405-R

Part No MGS152405-R
Manufacturer Cosel USA, Inc.
Catalog Power Supplies Board Mount DCDC Converters
Description DC DC CONVERTER 5V 15W
Sample
Rohs State rohs
ECAD Module
Need Help

Products specifications Report Issue?

Category Power Supplies - Board Mount - DC DC Converters
Mfr Cosel USA, Inc.
Series MGS (15W)
Package Box
Product Status Active
Type Isolated Module
Number of Outputs 1
Voltage - Input (Min) 18V
Voltage - Input (Max) 36V
Voltage - Output 1 5V
Current - Output (Max) 3A
Power (Watts) 15 W
Voltage - Isolation 1.5 kV
Applications ITE (Commercial)
Temperature Range - Operating -40°C ~ 85°C (With Derating)
Efficiency 89%
Mounting Type Through Hole
Package / Case 6-DIP Module
Size / Dimension 1.00" L x 1.00" W x 0.39" H (25.4mm x 25.4mm x 9.9mm)
Base Product Number MGS152405
Standard Package 1 pcs
MSL Level Not Applicable
ECCN EAR99
HTSUS 8504.40.9580
California Prop 65 Warning Information
Win Source Part Number 846882-MGS152405-R
Ultra Librarian 3D Model Ultra Librarian MGS152405-R CAD Model

Description

The MGS152405-R is a 15W DC-DC converter module from Cosel USA's MGS series.

  • Application: Board Mount
  • Output Voltage: Regulated 5V
  • Voltage Isolation: 1.5 kV
  • Size: 1.00" L x 1.00" W x 0.39" H
  • Application: ITE (Commercial)
  • Maximum Output Current: 3A
  • Input Voltage: 18V to 36V
  • Efficiency: 89%
  • Mounting Type: Through-Hole
  • Package: 6-DIP Module
  • Product Status: Active
  • California Prop 65 Warning: Yes
