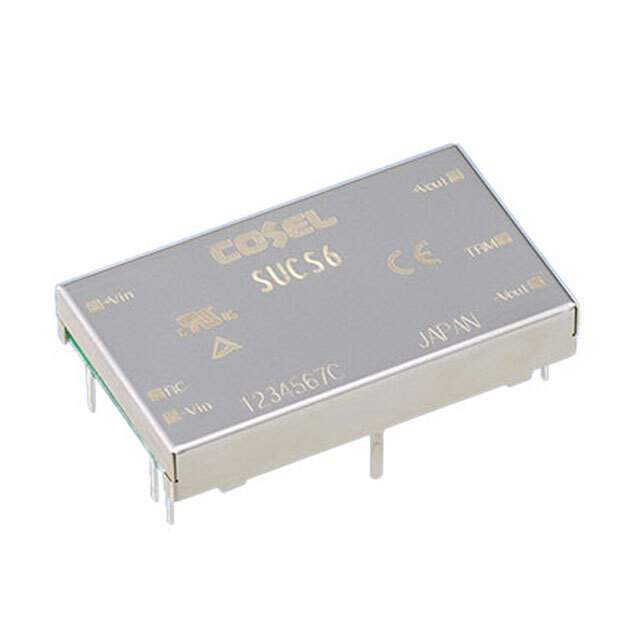

SUCS60515C

Name: SUCS60515C
Brand: Cosel USA, Inc.
SKU: 1033343
Availability: InStock
Rating: 4.85 (5 reviews)

Get a Quote

Part No	SUCS60515C
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 15V / Isolated Module DC DC Converter 1 Output 15V 400mA 4.5V - 9V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount>DC DC Converters
Mfr	Cosel USA, Inc.
Series	SUCS (6W)
Package	Box
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	4.5V
Voltage - Input (Max)	9V
Voltage - Output 1	15V
Current - Output (Max)	400mA
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	Remote On/Off, OCP
Temperature Range - Operating	-40°C ~ 85°C (With Derating)
Efficiency	80%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Dimension	1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm)
Base Product Number	SUCS60515
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
Other Names	1776-1613
Standard Package	1
Win Source Part Number	1033343-SUCS60515C
Ultra Librarian 3D Model	Ultra Librarian SUCS60515C CAD Model

Alternative Products

Description

The SUCS60515C is a 6W isolated module DC-DC converter from Cosel USA, Inc.

Power: 6W
Feature: remote on/off
Protection: overcurrent protection
Package: 6-DIP module
Mounting Type: through hole
Voltage Isolation: 500V
Output: one output
Maximum Output Current: 400mA
Input Voltage: 4.5V to 9V
Output Voltage: 15V
Efficiency: 80%
Application: ITE (Commercial)
Temperature Range: -40°C to 85°C with derating
Dimension: 1.28" L x 0.73" W x 0.28" H (32.6mm x 18.6mm x 7.0mm)
HTSUS: 8504.40.9580
Alternative Parts: SUS60515C, SUS61215C, SUS64815C, NCS6S1215C, NDS6S2415C, and ASA00C18-LS
