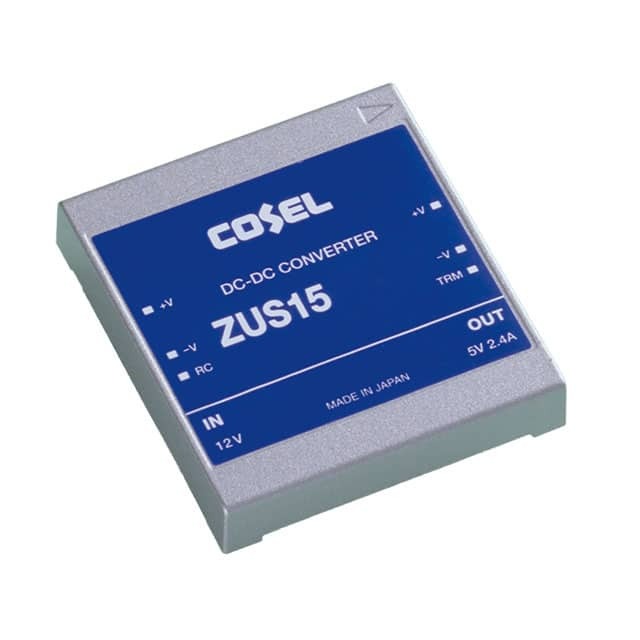

Same model may have multiple batches, images only for reference.

ZUS152405

Name: ZUS152405
Brand: Cosel USA, Inc.
SKU: 940038
Availability: InStock
Rating: 4.93 (5 reviews)

Get a Quote

Part No	ZUS152405
Manufacturer	Cosel USA, Inc.
Catalog	Power Supplies Board Mount DCDC Converters
Description	DC DC CONVERTER 5V / Isolated Module DC DC Converter 1 Output 5V 2.4A 18V - 36V Input
Sample
Rohs State
ECAD Module
	Add to BOM List New List Existing List This product has been added to your list. List name
Need Help

Products specifications Report Issue?

Category	Power Supplies - Board Mount - DC DC Converters
Mfr	Cosel USA, Inc.
Series	ZUS (15W)
Package	Box
Product Status	Obsolete
Type	Isolated Module
Number of Outputs	1
Voltage - Input (Min)	18V
Voltage - Input (Max)	36V
Voltage - Output 1	5V
Current - Output (Max)	2.4A
Voltage - Isolation	500 V
Applications	ITE (Commercial)
Features	Remote On/Off, OCP, OVP
Temperature Range - Operating	-20°C ~ 71°C (With Derating)
Efficiency	80%
Mounting Type	Through Hole
Package / Case	6-DIP Module
Size / Dimension	1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm)
Standard Package	1 pcs
MSL Level	Not Applicable
ECCN	EAR99
HTSUS	8504.40.9580
California Prop 65	Warning Information
Win Source Part Number	940038-ZUS152405
Ultra Librarian 3D Model	Ultra Librarian ZUS152405 CAD Model

Alternative Products

Description

The ZUS152405 is a 15W isolated module DC-DC converter designed for power supply applications.

Power: 15W
Package: Box (1.97" L x 1.77" W x 0.33" H (50.0mm x 45.0mm x 8.5mm))
Series: ZUS (15W)
Features: Remote On/Off, overcurrent protection (OCP), and overvoltage protection (OVP)
Application: Power supply
Commercial: Commercial
Standard Package: 1 piece
Voltage Isolation: 500V
Maximum Output Current: 2.4A
Input Voltage: 18V to 36V
Output Voltage: 5V
Efficiency: 80%
Operating Temperature: -20°C to 71°C with derating
Status: Obsolete
Manufacturer: Cosel USA, Inc.
Compliance: California Prop 65 regulations
